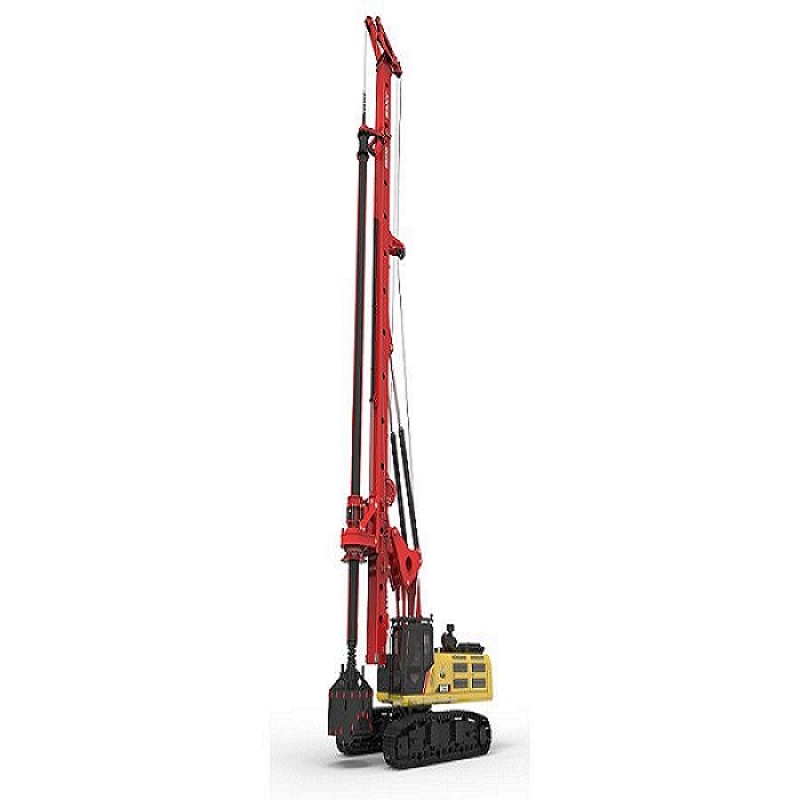

BRAND NEW SANY ROTARY DRILLING RIG - SR235 - C10 SERIES - BASE ENGINE: ISUZU 6UZ1X - ENGINE POWER: 257 kW/2000 rpm - SANY-ADMS INTELLIGENT OPERATING SYSTEM:

SR235C10 rotary drilling rig is your No.1 choice for civil construction.

High Drilling Capacity:

13-15m friction Kelly, 12-15m interlocking Kelly made of high strength steel tubes are available; Maximum output torque reaches 235kN.m, the maximum pile depth is 68m down, maximum pile diameter is 2000mm.

Isuzu engine with rated power of 257kW@2000rpm, six gears control provides strong power to the machine, improving the drilling capacity.

New design of main winch delivers faster line speed of 70m/min, bigger lifting power with 235kN line pull.

Safe and Reliable:

The 5th generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase drilling efficiency and safety.

SANY-ADMS intelligent operation system, advanced hydraulic system and heavy wide chassis ensure efficient, safe and stable operation.

Advanced welding robots, CNC automatic cutting machines ensure high precision and quality of the core components.

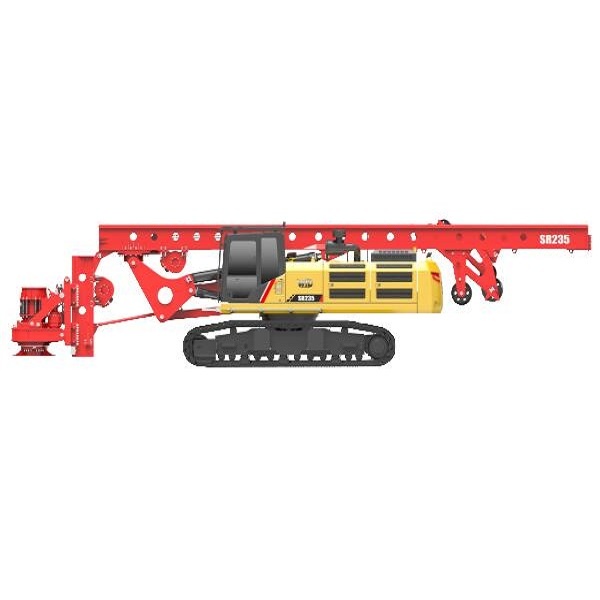

Easy to Transport & Operate:

Compact in transport height and weight, the drilling rig is easy to transport in cities. The tailored chassis with larger spaces for pumps and valves is for easy maintenance during work. Spacious cab with panorama sunroof is designed to give the operator a comfortable environment and wide visibility.

Configuration Table:

MAST SYSTEM：

*Mast verticality measuring *Mast sideward limits *Boom working range measuring *Cab anti-collision protection

MAIN WINCH：

*Overload measuring *Ground touching protection *Freewheel control *Fast lowering *Camera monitoring system *Speed measuring *Depth measuring *Upper limit protection function

AUXILIARY WINCH:

*Upper limit protection function

CROWD SYSTEM:

*Cylinder crowd system *Crowd force measuring

ROTARY DRIVE:

*Torque measuring *Multi- gear control system

MAIN CHASSIS:

*Oil pressure measuring device *All- directional lighting system *Slew angle measuring *Emergency stop switch *Slew siren *Diesel- electric pump *Auto idle model *Low temperature preheat unit *Integrated overload protection *Casing driver *Air- conditioner

*Radio *Gradienter *Anemometer Caution light

OPERATION SYSTEM:

*10- inch touch screen *SANY- ADMS control system*E- Pad *Central test point *Fault self- diagnosis system *Intelligent construction-management system *All- directional camera monitoring system *Digital simulation animation *Auto/manual mast verticality adjusting
