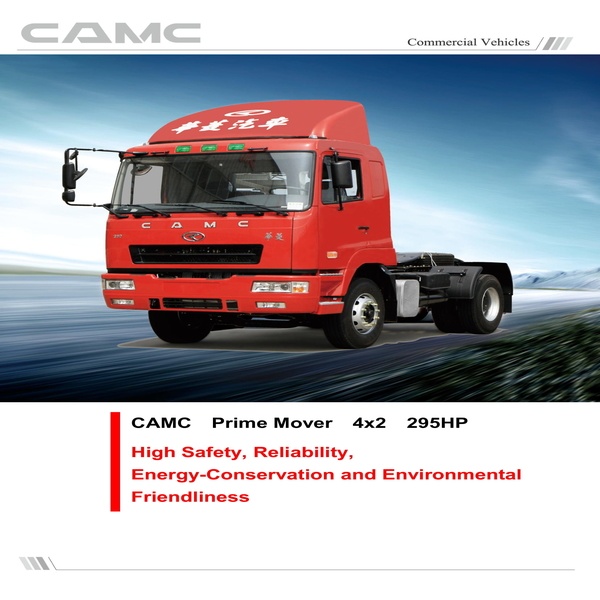

CAMC Prime Mover 4x295HP Engine Power-295HP (217kW) @ 1900 r/min High Safety, Reliability, Energy-Conservation and Environmental Friendliness

৳ 1.00 Per Unit

In stock

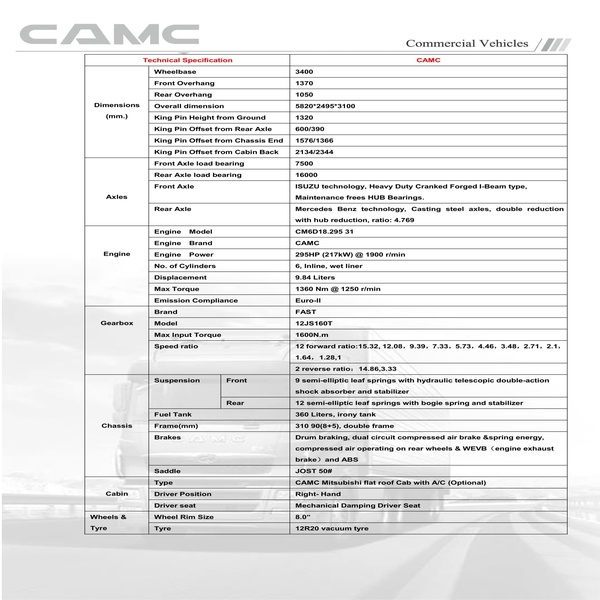

Technical Specification

  • Brand: CAMC
  • Engine Model: CM6D18.385 31
  • Engine Power: 295HP (217kW) @ 1900 r/min
  • Displacement: 9.84 Liters
  • Max Torque: 1360 Nm @ 1250 r/min
  • Gearbox Brand: FAST
  • Gearbox Model: 12JS160T
  • Gearbox Max Input Torque:  1600N.m
  • Front Axle load bearing: 7500
  • Rear Axle load bearing: 16000*2
  • Tyre: 12R20 vacuum tyre
  • Wheelbase:3400
  • Front Overhang: 1370
  • Rear Overhang: 1050
  • Overall dimension: 5820*2495*3100
  • King Pin Height from Ground 1320
  • King Pin Offset from Rear Axle 600/390
  • King Pin Offset from Cabin Back 2134/2344
  • Fuel Tank:360 Liters, irony tank
Download Shodagor mobile app for quick order. Install App
MOQ: 1
Start Order

  Contact Seller

Front Axle: ISUZU technology, Heavy Duty Cranked Forged I-Beamtype, Maintenance frees HUB Bearings.

Rear Axle: Mercedes Benz technology, Casting steel axles, doublereductionwith hub reduction, ratio: 4.769

Speed ratio: 12 forward ratio:15.32, 12.08,9.39,7.33,5.73,4.46,3.48,2.71,2.1,1.64,1.28,1

Suspension  Front: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorber and stabilizer

Suspension Rear: 12 semi-elliptic leaf springs with bogie spring and stabilizer

Brakes: Drum braking, dual circuit compressed air brake &springenergy, compressed air operating on rear wheels & WEVB(engineexhaustbrake)and ABS

Cabin Type: CAMC Mitsubishi flat roof Cab with A/C (Optional)

Cabin Driver Position:  Right- Hand

Driver seat: Mechanical Damping Driver Seat

Wheels  & Tyre Wheel Rim Size 8.0”

Additional information

Weight 40000 kg
