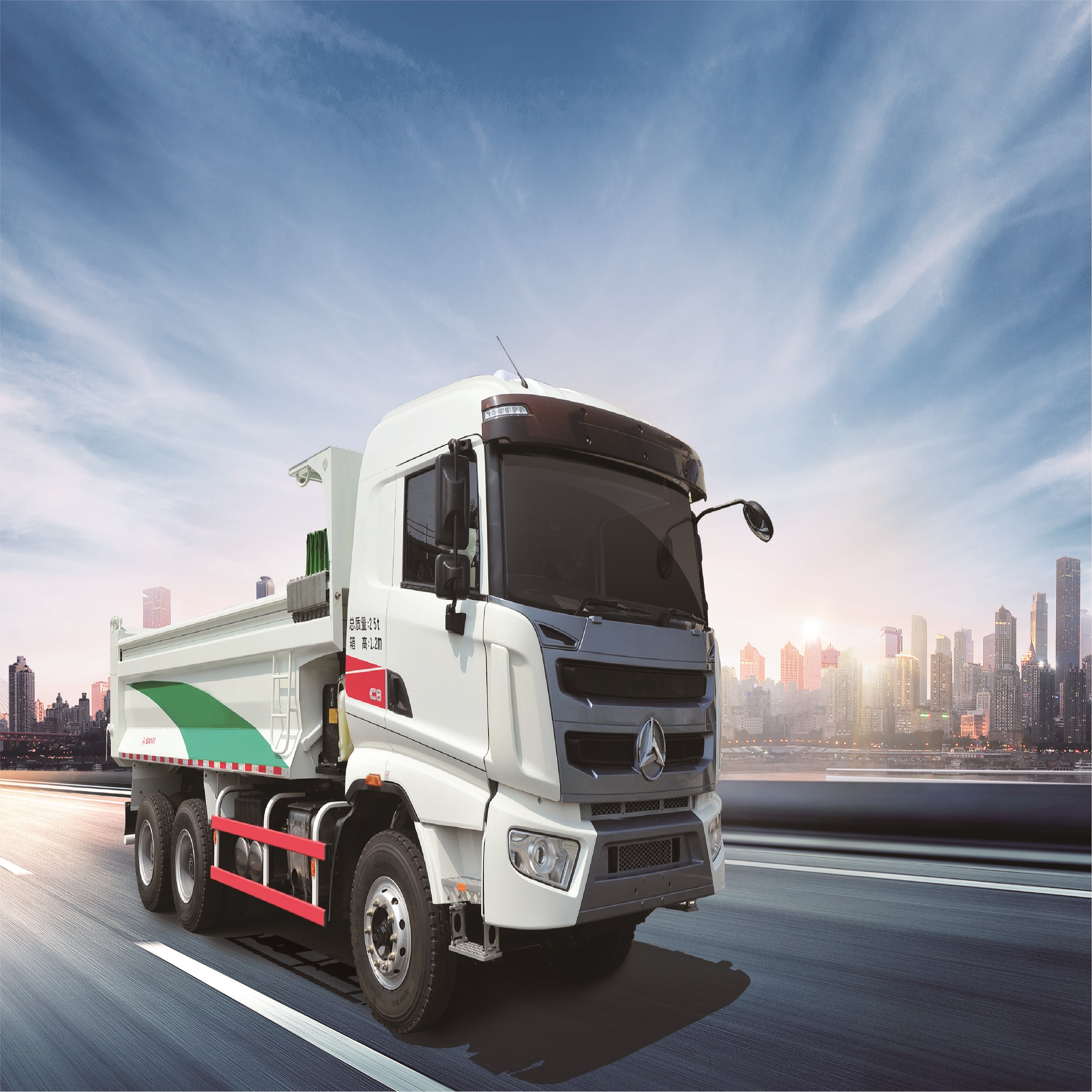

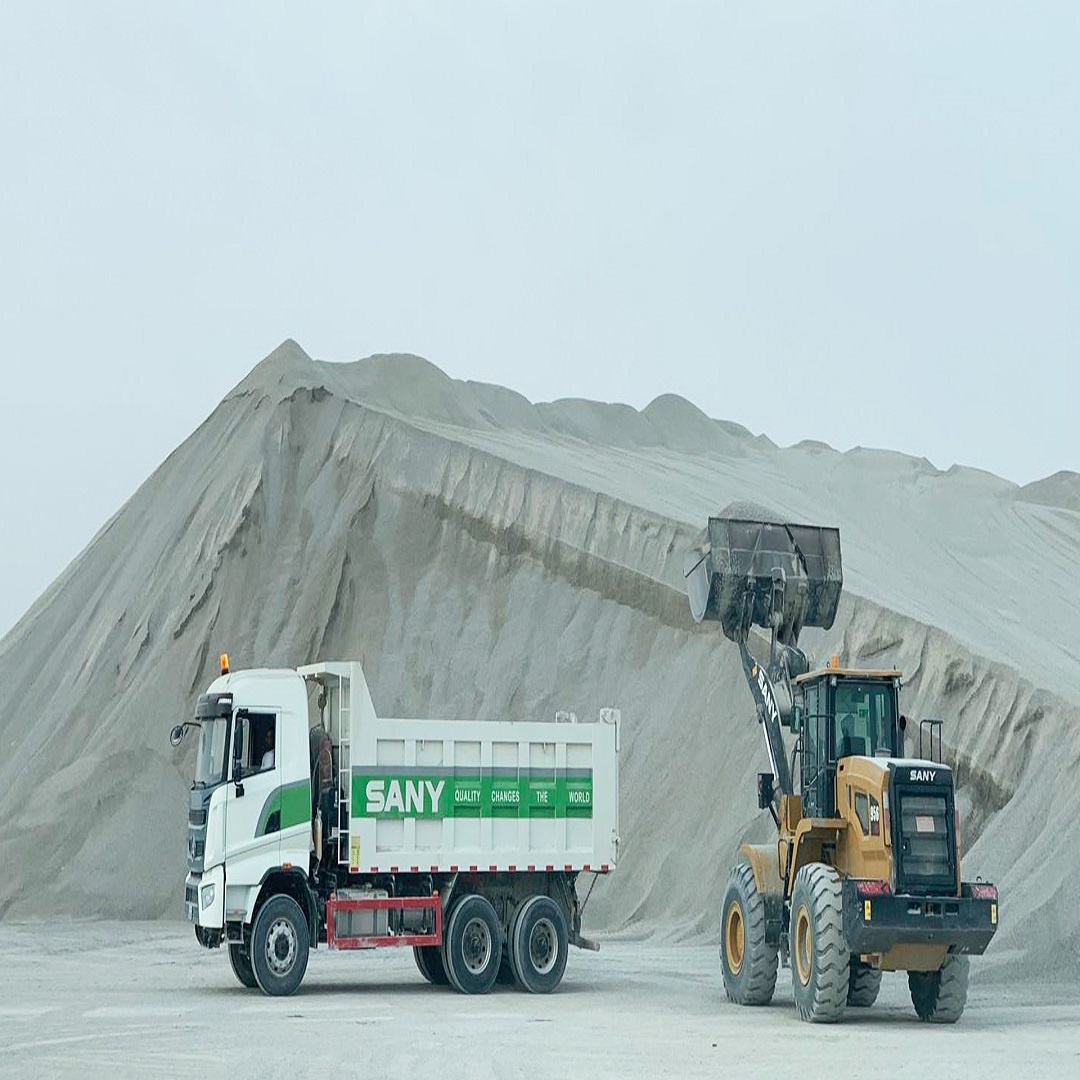

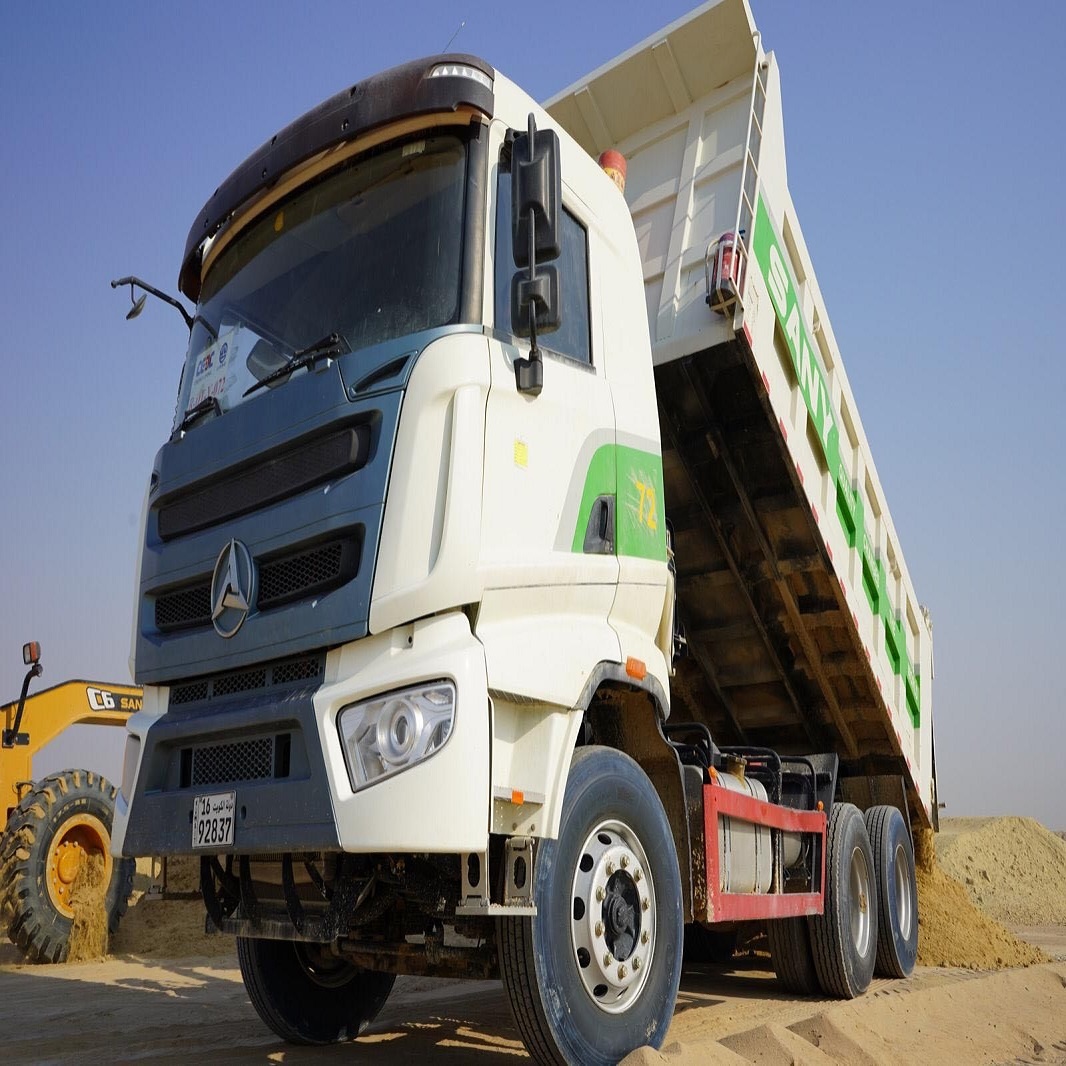

BRAND NEW SANY DUMP TRUCK SYZ323C – 8R – 49 TON FULL LOAD WEIGHT – SANY DEUTZ POWER ENGINE, DEVELOPED BR GERMAN DEUTZ – ENGINE: J08E-UP (HINO) – ENVIRONMENT FRIENDLY

৳ 1.00 Per Unit

In stock

PRODUCT DETAILS:

  • Dimension (L×H×W): 9010mm × 2530 mm × 3590 mm
  • Gross Weight: 14500 kg
  • Max. Full Load Weight: 49000 kg
  • Min. Turning Diameter: 21 m
  • Max. Gradability: ≥48%
  • Max. Speed: 85 km/h
  • Steering Wheel: Right-mounted
  • Cargo Capacity: 23 m³
  • Cargo Empty: 6000 mm × 2300 mm × 1700 mm
  • Lifting Angle: 48°
  • Lifting Mode: Front Lifting
  • Manufacturer: SANY
  • Engine: J08E-UP (HINO)
  • Power: 222 kW
  • Emission Standard: Euro / /
  • Axles Quantity: 3
  • Wheel Base: 4300+1400 mm
  • Gear Box: FAST 10JSD120B
  • Front Axle: 9.5 T
  • Rear Axle: 2×16 T
  • Tyre: 12.00R20
  • Cab: SANY CB318
  • Fuel: Tank 300 L

Download Shodagor mobile app for quick order. Install App
MOQ: 1
Start Order

  Contact Seller

BRAND NEW SANY DUMP TRUCK SYZ323C – 8R – 49 TON FULL LOAD WEIGHT – SANY DEUTZ POWER ENGINE, DEVELOPED BR GERMAN DEUTZ – Engine: J08E-UP (HINO) – ENVIRONMENT FRIENDLY:

Strong Power:
SANY-DEUTZ power engine, Fast transmission and HanDe axle constitute the golden power chain, the climbing performance is improved by 5% and the fuel consumption is reduced by 3%. SANY-DEUTZ power engine, developed by German DEUTZ and SANY Heavy Industry, German quality, specially designed for heavy load operation, three-year warranty period.
FAST helical gear transmission, standard 2400 N.m torque, higher transmission efficiency, more stable output efficiency.
The standard 16T HanDe cast steel axles, good waterproof performance, long maintenance period.
SANY pump truck patented steel technology for chassis and leaf spring, the bearing performance is improved by 10%.

Safe & Comfortable:
SCANIA technology cabin body, large space, luxury interior, the integration of driving and entertainment.
Integrally stamped and formed cabin frame, meet the European certification of positive impact and top pressure inspection.

Characteristic Configurations:
Excellent chassis traffic ability, high ground clearance. The water tank installation position is reserved on the left side of the truck; the maximum length is up to two meters. Optional mine tread tires and optional cargo box thickness.

Quality:
More Reliable:
*Digital simulation
*Structure test
*Experienced 300,000KM road test.

More Energy-efficient:
*Superior Engine & Gearbox Combination.
*Equipped with Euro III diesel engine, 10 AT wide speed gearbox and double reduction axles with high speed ratio. Fuel consumption is less than 45L/100KM when full load at the speed of 50KM/H.

Security:
Efficient Braking System:
*Through the combination of engine exhaust brake and tyre brake system, braking distance could be ≤10m(v=30km/h) when full load. Security risk was dramatically reduced.

Lower Gravity:
*Height of gravitational center is 1315mm, move safe and stable.

Additional information

Weight 14500 kg
Dimensions 9010 × 3590 × 2530 in
