Brand New SANY Ship to Shore Container Cranes -Rated Hoisting Capacity under Spreader (35t – 135t)- Outreach : ( 18~75 m)- Back Reach : (0~28 m).

৳ 1.00 Per Unit

In stock

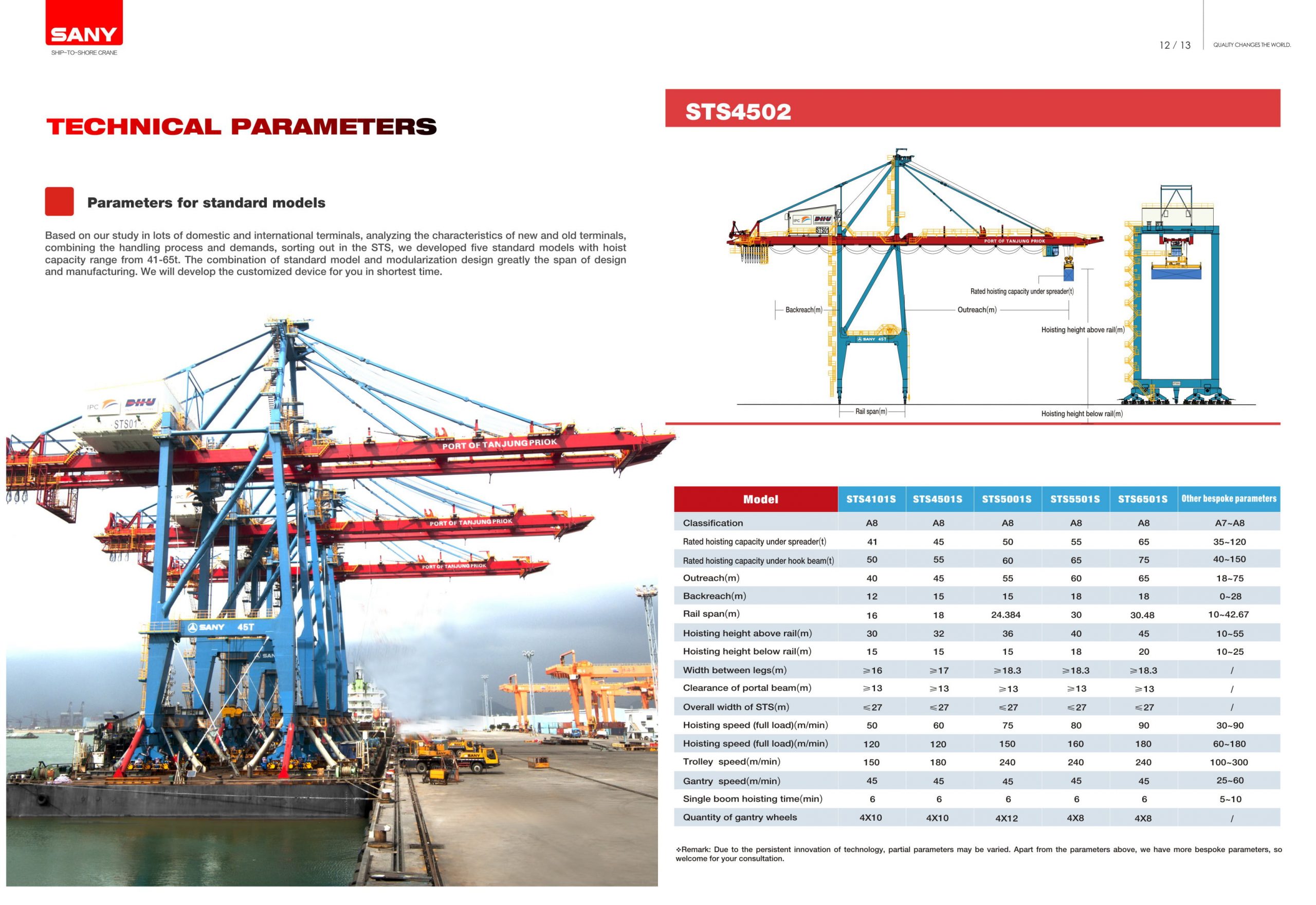

PRODUCT TECHNICAL SPECIFICATIONS:

  • Rated Hoisting Capacity under Spreader : 35~80 t
  • Outreach : 25~70 m
  • Back Reach : 8~28 m
  • Span : 16~42 m
  • Hoisting height above rail (m): 30-45
  • Hoisting height below rail (m): 15- 20
  • Overall width of STS (m): 27
  • Hoisting speed (full load m/min): 50-90
Download Shodagor mobile app for quick order. Install App
MOQ: 1
Start Order

  Contact Seller

Ship to Shore Container Crane

SANY STS is custom designed and built to meet your individual terminal requirements. Available with 8-wheel, 10-wheel and 12-wheel modular configurations, and a wide range of outreaches, hoisting capacity and span, SANY STS crane fits for workloads at different ports. High working efficiency and hearty security are assured with leading technologies.

Excellent Performance

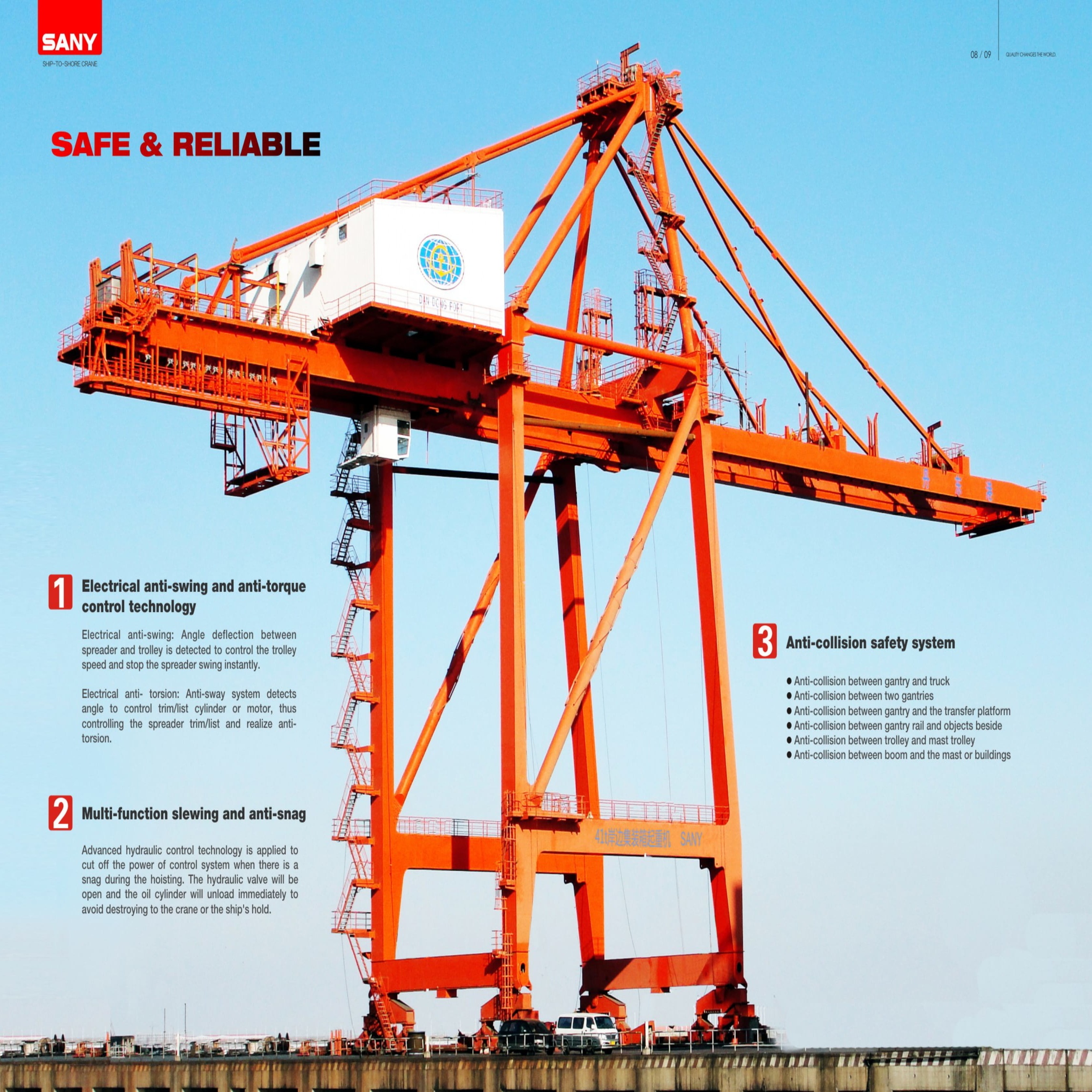

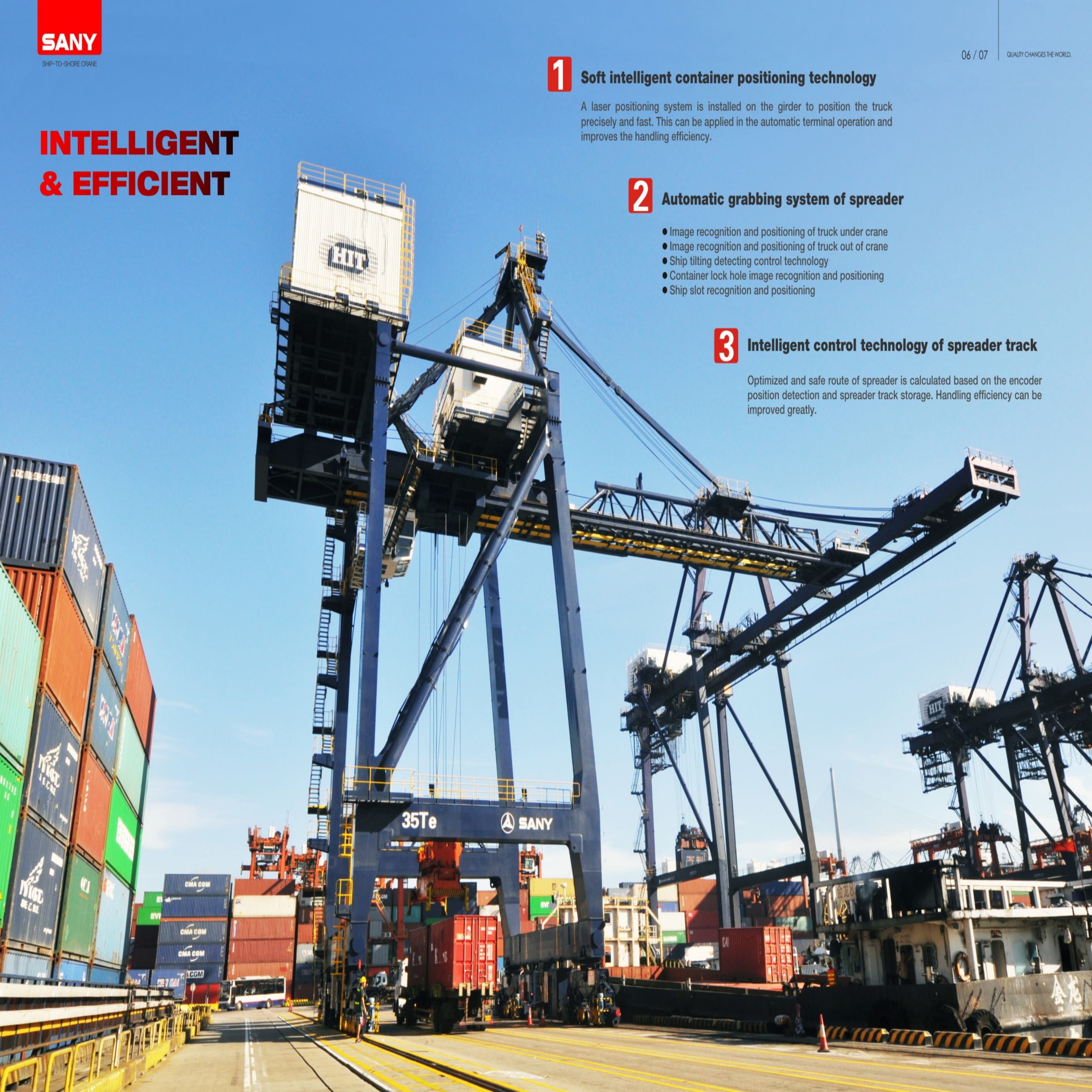

1. Multi-function slewing and anti-snag technology 2. Active rectifier technology applied for energy recycling 3. Intelligent control on spreader track improves efficiency and safety 4. High-speed traversing of trolley on the rails of girders 5. Soft and intelligent landing of containers onto the truck 6. Automatic positioning and locking of spreader 7. Malfunction automatic detection and real-time display of data on CMS interface

Comfortable Operation

1. Superior inclusive view from the cab ease tension and fatigue of operator 2. Centralized S+B joystick ensure precise control and convenient operation 3. Centralized console with appropriate layout and ergonomic design 4. 10.1 inch high-resolution touch screen 5. Damping suspension seat is comfortable, ventilating and adjustable 6. Multi-function air-conditioner is anti-fog, defrosting and ventilating 7. Sound-absorbing and denoising 8. Radio in the cab

Detail Highlights

1. Mounting preciseness of the trolley rail conforms to the FEA regulations. 2. Braking devices of the high-speed brake set on the two ends 3. A safety support to prevent the trolley frame from falling 4. Driven by a full digital frequency control system 5. Integrate coating technology prevent erosion from salt spray

Manufacture and Delivery

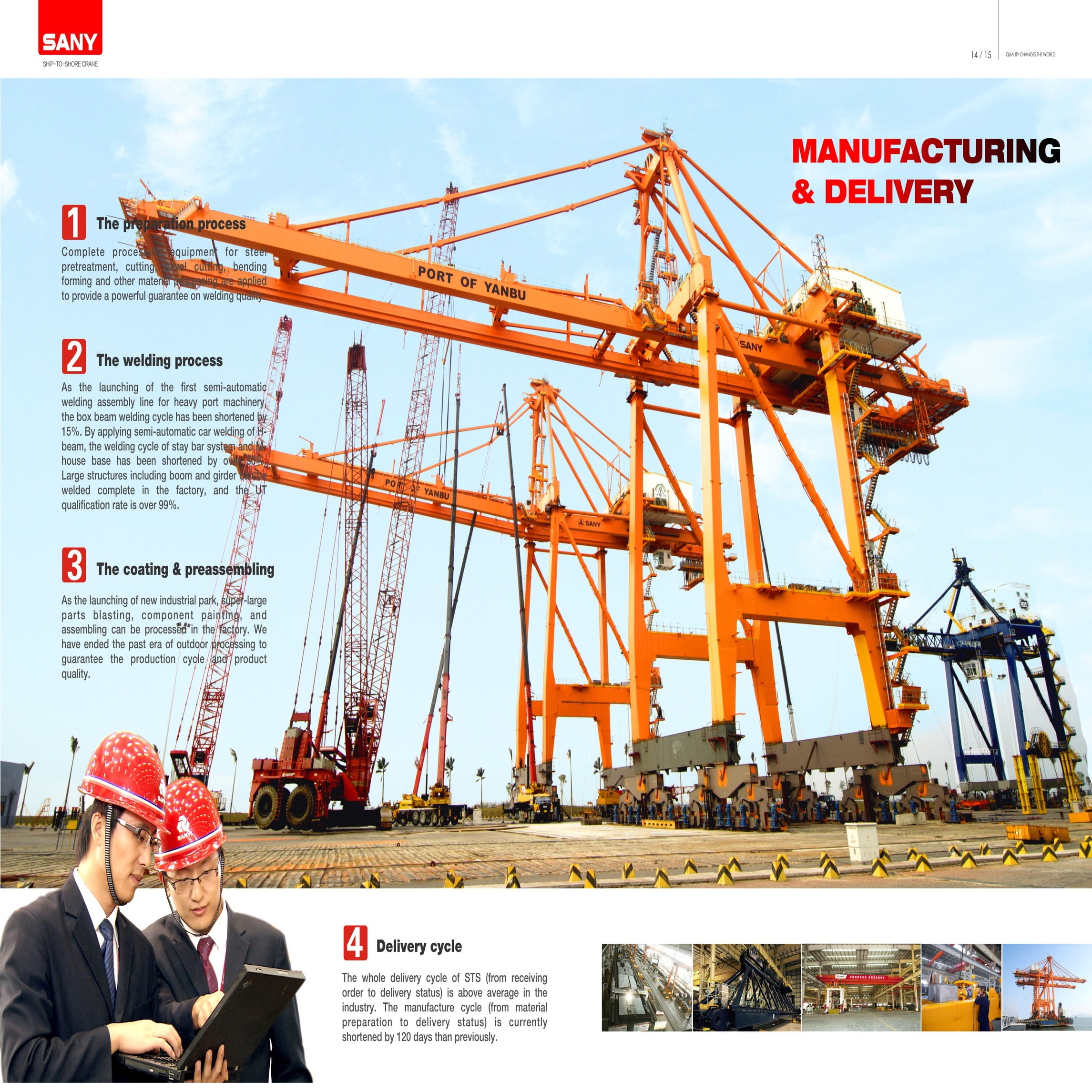

1. CAE design system improves designing efficiency and quality 2. Modularity of over 40 thousand parts 3. Top manufacturing with high-strength full welding steel structure conforming to AWS 4. Rigorous test and detection system including fatigue, vibration, control, power etc. 5. High quality product, rapid manufacturing and quick delivery.

Additional information

Dimensions 1875 × 27 × 45 in
