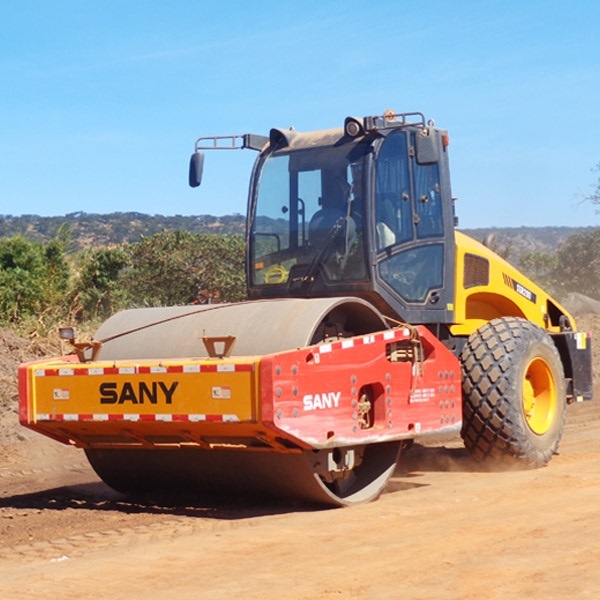

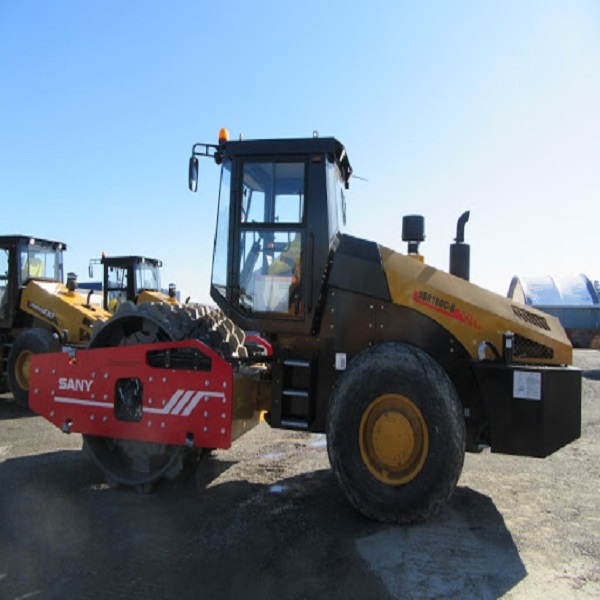

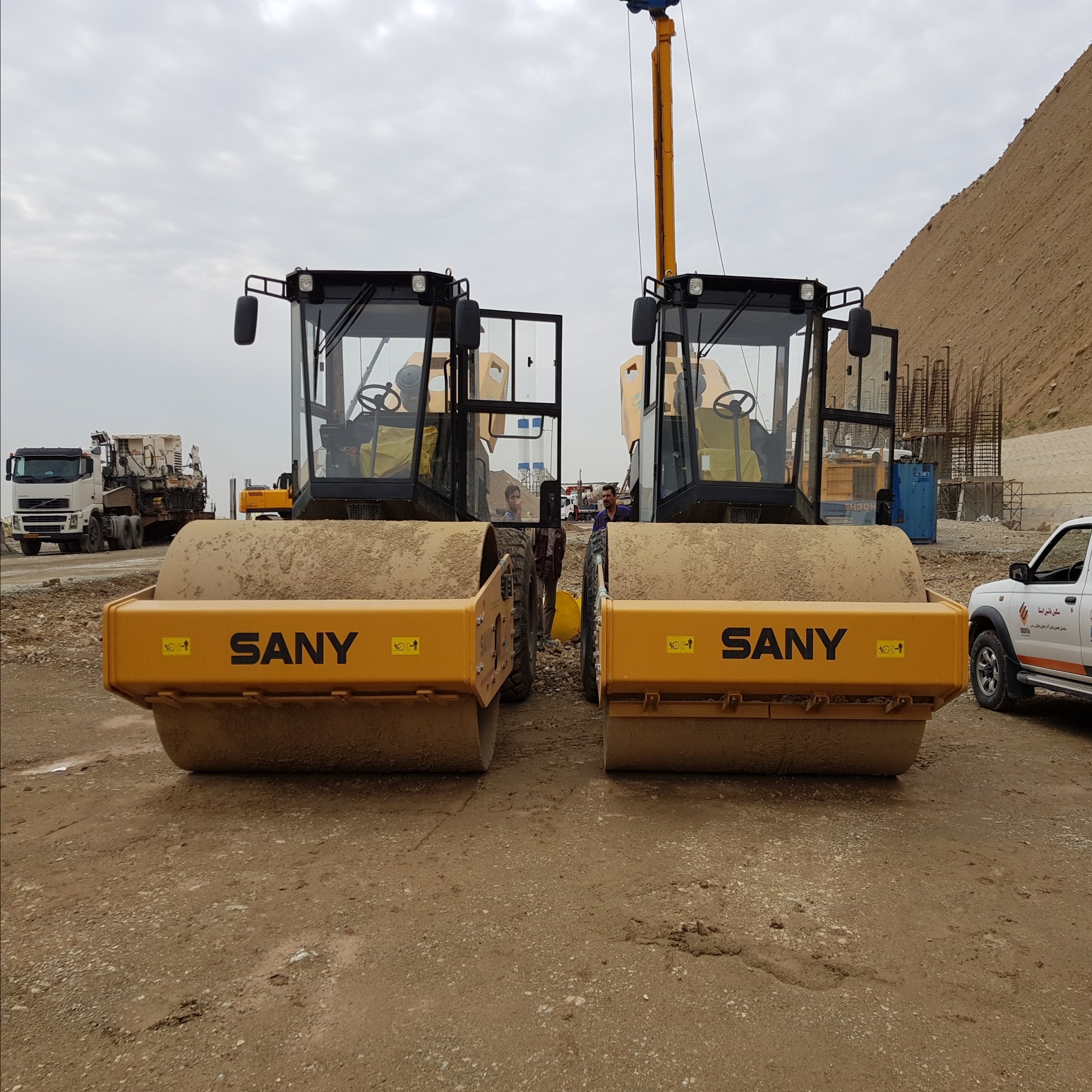

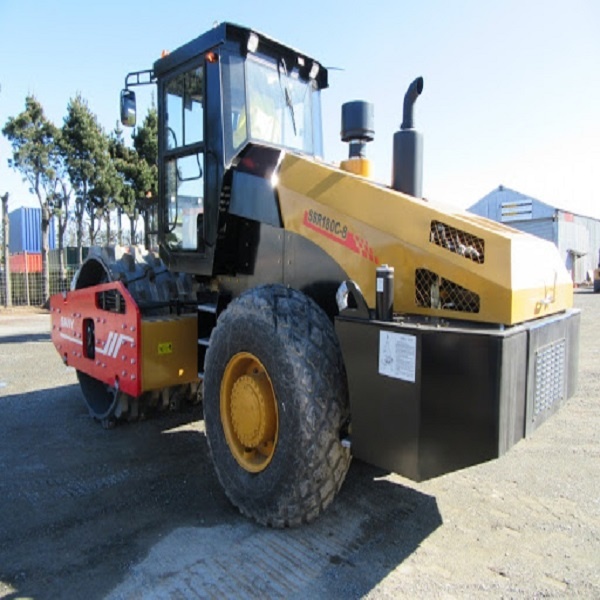

BRAND NEW SANY SINGLE DRUM ROLLER (DUAL DRIVE) – 18 TON – (SSR180C-8) – CUMMINGS/WEICHAI ENGINE (Model: WP6G200E331) – 10% GREATER EXCITIATION FORCE – 16.7% GREATER PRODUCTION
- Brand: SANY
৳ 1.00 Per Unit
- Operating Weight: 18000 kg
- Weight at Drum: 12400 kg
- Weight at Rear axle: 5600 kg
- Drum Static Linear Load: 582 (N/cm)
- Vibration Frequency: 29/35 (Hz)
- Nominal Amplitude: 2.0/1.0 (mm)
- Excitation Force: 380/275 (kN)
- Drum Diameter: 1600 (mm)
- Drum Width: 2130 (mm)
- Drum Edge Thickness: 40 (mm)
- Travel Speed: 0~5.5/0~7.5km/h
- Working Speed: 0~3.5/0~4.5km/h
- Theoretical Gradeability Vibratory: 45%
- Theoretical Grandeability Non-Vibratory: 50%
- Ground Clearance: 410 mm
- Wheelbase: 3182 mm
- Steering Angle: ± 35°
- Swing Angle: ± 12°
- Min. Turning Outside Diameter: 12350 mm
- Tires: 23.1-26-8PR
- Brand: CUMMINS/WEICHAI
- Model: WP6G200E331
- Emission: Euro Ⅲ
- Rated Power: 147 kW
- Battery: 24V × 120Ah
- Fuel Tank: 300 L
- Hydraulic Oil Tank: 150 L
- Height: 3190 mm
- Width: 2318 mm
- Length: 6497 mm
BRAND NEW SANY SINGLE DRUM ROLLER (DUAL DRIVE) – 18 TON – (SSR180C-8):
10% greater excitation force than other products in the same category resulting in 16.7% greater production.
EXTENDED LIFE TIME:
The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours. The engine air flyer is raised and the air is filtered twice to protect the engine. The hydraulic system contains three stage filtration.
Cab mounted on vibration damping mounts. Cab climate control. Operator control forces have been reduced.
Rounded bumpers front and rear. Large rear glass and sloped hood for greater visibility.
AUTOMATIC OIL-SPRAYING TECHNOLOGY:Pneumatic powered automatic oil-spraying prevents asphalt from sticking to the tires. Two minute suction refill of oil tank eliminates the manual refilling. Eliminates the safety hazard of manually applying oil.
HYDRAULIC DRIVE SYSTEM:Continuously variable drive system provides smooth starting and stopping. Controls are easy to learn and easy to operate.
HYDRAULIC BRAKE SYSTEM:
Hydraulic all-wheel braking is engaged upon engine or transmission failure. Braking distance is 50% less than similar equipment. Trans axle brake is applied when the equipment stops without the need for hand brake.
|Dimensions||6497 × 2318 × 3190 in|
