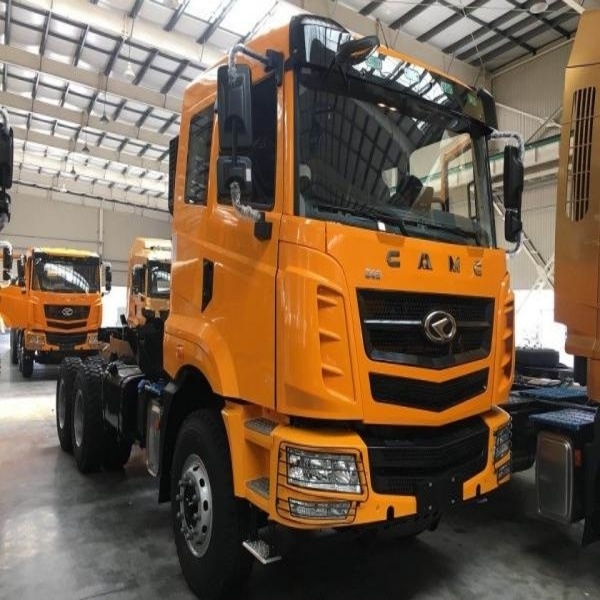

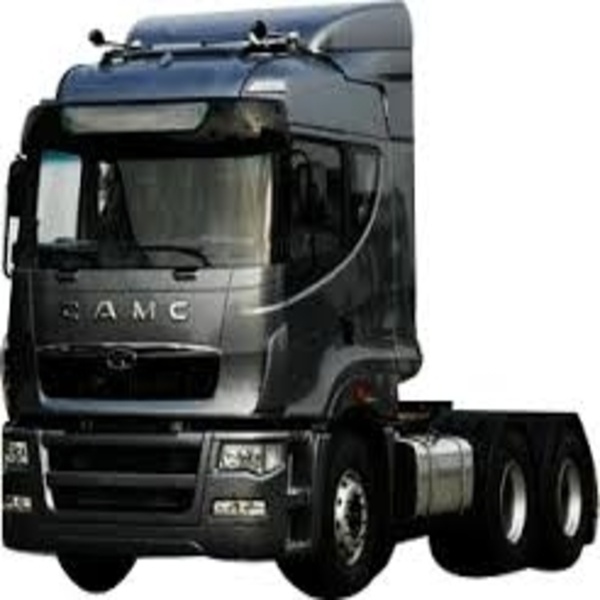

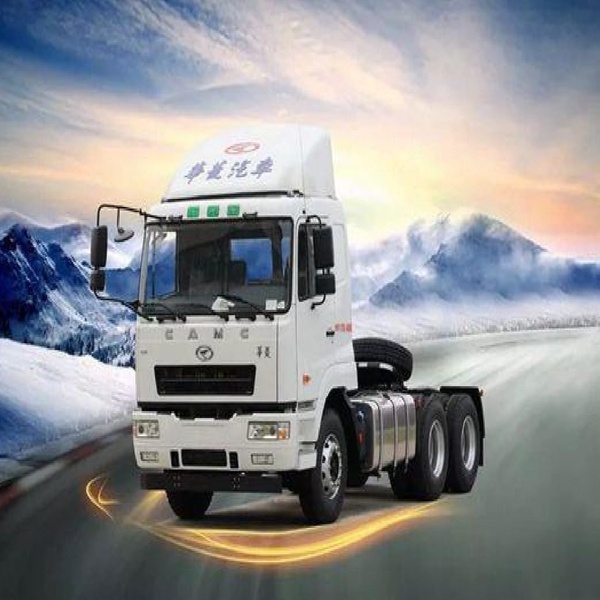

CAMC Prime Mover 6X4 420HP Engine Power-420HP (309kW) @ 1900 r/min High Safety, Reliability, Energy-Conservation andEnvironmentalFriendliness

৳ 1.00 Per Unit

In stock

Technical Specification

  • Brand: CAMC
  • Engine Model: CM6D28.420 31
  • Engine Power: 420HP (309kW) @ 1900 r/min
  • Displacement: 9.84 Liters
  • Max Torque: 1930 Nm @ 1100-1450 r/min
  • Gearbox Brand: FAST
  • Gearbox Model: 12JS200T
  • Gearbox Max Input Torque:  2000N.m
  • Front Axle: 7500
  • Rear Axle: 16000*2
  • Tyre: 12R20 vacuum tyre
  • Wheelbase: 3400+1350
  • Front Overhang:  1370
  • Rear Overhang:  840
  • Overall dimension:  6760*2500*3200
  • Turning Radius:  5480
  • Distance between:  rear axle 1350
  • King Pin Height from: Ground 1320
  • Fuel Tank: 380 Liters, irony tank
Download Shodagor mobile app for quick order. Install App
MOQ: 1
Start Order

  Contact Seller

Front Axle: ISUZU technology, Heavy Duty Cranked Forged I-Beam type, Maintenance frees HUB Bearings.

Rear Axle: Mercedes Benz technology, Casting steel axles, double reduction with hub reduction, ratio: 4.769

Speed ratio: 12 forward ratio:15.32, 12.08,9.39,7.33,5.73,4.46,3.48,2.71,2.1,1.64,1.28,1

Suspension  Front: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorber and stabilizer

Suspension Rear: 12 semi-elliptic leaf springs with bogie spring and stabilizer

Brakes: Drum braking, dual circuit compressed air brake &spring energy, compressed air operating on rear wheels & WEVB(engineexhaustbrake)and ABS

Cabin Type: CAMC Mitsubishi flat roof Cab with A/C (Optional) Flat sleeper cab with a sleeper bunk.Hydraulic Cab Tilt with the tilt angle of 60 degrees

Cabin Driver Position:  Right- Hand

Driver seat: Mechanical Damping Driver Seat

Wheels  & Tyre Wheel Rim Size 8.0”

Additional information

Weight 40000 kg
