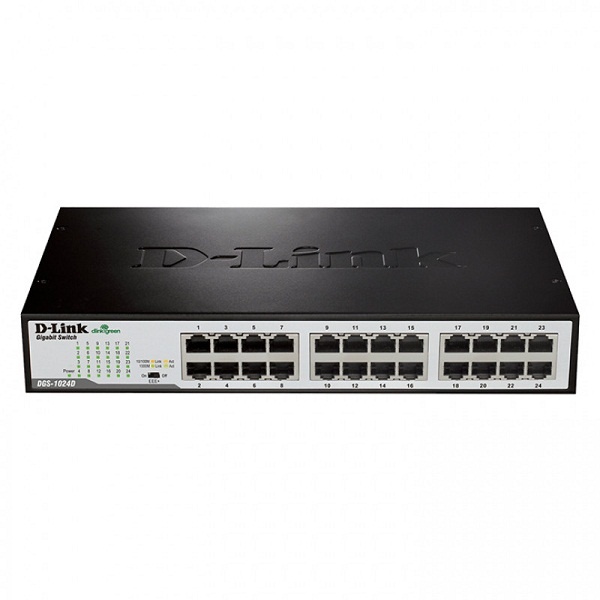

D-Link DES 1024D,24 Ports

Technical Specifications

General

Number of Ports
• DGS-1016D:  Sixteen 10/100/1000 Gigabit ports
• DGS-1024D:  Twenty-four 10/100/1000 Gigabit ports

Standards
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control

Data Transfer Rates
• Ethernet:
    • 10 Mbps (half duplex)
    • 20 Mbps (full duplex)
• Fast Ethernet:
    • 100 Mbps (half duplex)
    • 200 Mbps (full duplex)
• Gigabit Ethernet:
    • 2000 Mbps (full duplex)

Network Cables
• 10BASE-T:
    • UTP CAT 3, 4, 5/5e (100 m max)
    • EIA/TIA-586 100-ohm STP (100 m max)
• 100BASE-TX, 1000BASE-T:
    • UTP CAT 5/5e (100 m max)
    • EIA/TIA-568 100-ohm STP (100 m max)

Functionality

D-Link Green Features
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Link status detection power saving
• RoHS Compliance

Media Interface Exchange
• Auto MDI/MDIX

Transmission Method
• Store-and-Forward switching method

MAC Address Table
• 8K MAC addresses

RAM Buffer
• 512 KBytes RAM for data buffering

Jumbo Frames
• DGS-1016D:  9216 Bytes
• DGS-1024D:  9600 Bytes

Switching Capacity
• DGS-1016D:  32 Gbps
• DGS-1024D:  48 Gbps

Port Packet Filtering
• 10M: 14,880 pps
• 100M: 148,800 pps
• 1000M: 1,488,000 pps
