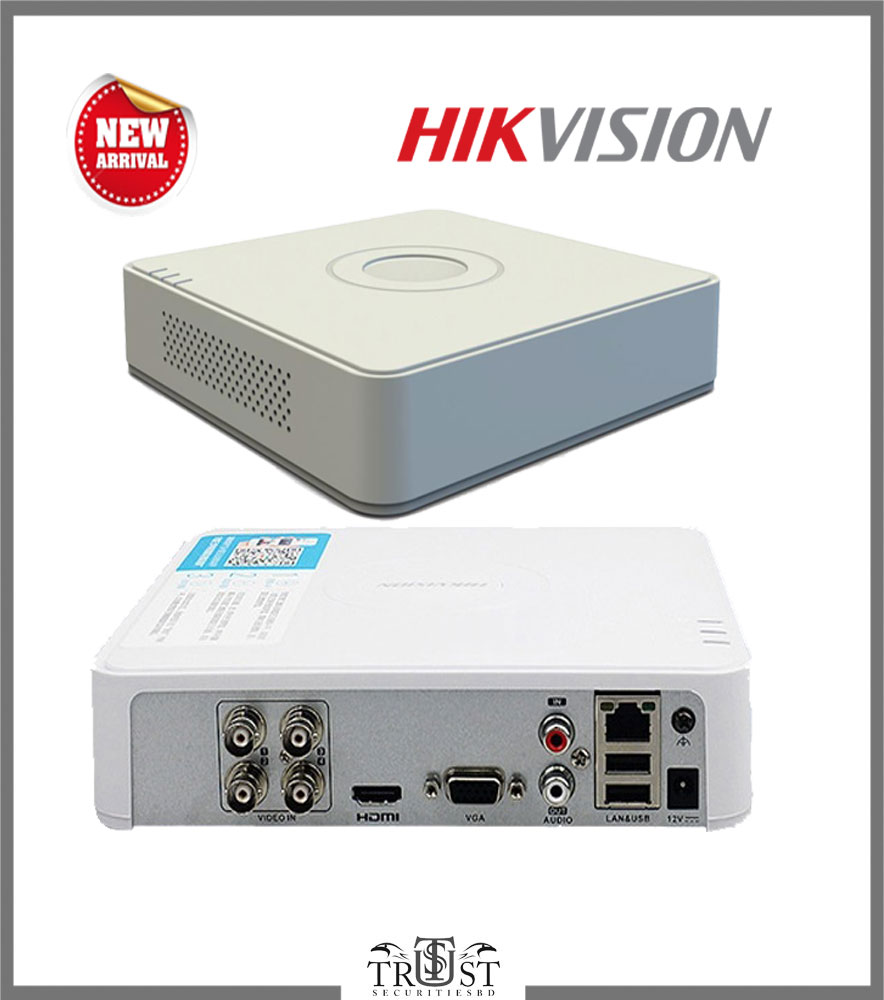

HIKVISION DS-7104HGHI-F1 4-CH Turbo HD Upto 1080P DVR

৳ 2,781.00 per piece

In stock

HIKVISION DS-7104HGHI-F1 4-CH Turbo HD 1080P DVR

  • HIKVISION 4-CH Turbo HD 720P DVR,
  • Connectable to HD-TVI & analog cameras,
  • HDMI & VGA outputs at up to
  • 1920×1080P resolution,
  • 1 SATA interface for HDD with
  • up to 6TB capacity

Warranty – 01 Year

MOQ: 5
Buy Now Start Order

  Contact Seller
Category: Tags: , , ,
Video/Audio Output
HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution: When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame Rate: Main stream:
When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps ~ 4 Mbps
Stream Type: Video/Video&Audio
Audio Output: 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Dual Stream: Support
Synchronous Playback: 4-ch
Network management
Remote connections: 32
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI,
UPnP™, HTTPS
Hard Disk Driver
Interface Type: 1 SATA Interface
Capacity: Up to 6 TB capacity for each disk
External Interface
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces
General
Power Supply: 12V DC
Consumption: ≤ 8W
Working Temperature: -10 oC ~+55 oC (14 oF ~ 131 oF)
Working Humidity: 10% ~ 90%
Dimensions: 200 × 200 × 45mm (7.9 × 7.9 × 1.8 inch)
Weight: ≤ 0.8 kg / 1.8 lb(without hard disks)
Video/Audio Input
Audio Input: 1-ch
Video Compression: H.264,H.264+
Analog and HD-TVI video input: 4-ch BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection
Video Input Interface: BNC (1.0 Vp-p, 75Ω)
Audio Compression: G.711u
Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
