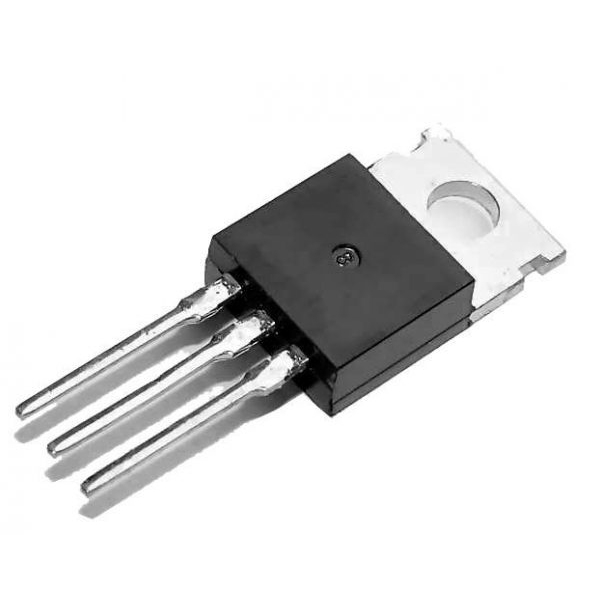

IRF3205 Power MOSFET

৳ 45.00 Per Piece

Sold By: S. Tech Shop

In stock

Product Description:

  • Advanced Process Technology

  • Ultra Low On-Resistance

  • Dynamic dv/dt Rating

  • 175°C Operating Temperature

  • Fast Switching

  • Fully Avalanche Rated

  • ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 110 A

  • ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 80 A

  • IDM Pulsed Drain Current 390 A

  • PD @TC = 25°C Power Dissipation 200 W

  • Linear Derating Factor 1.3 W/°C

  • VGS Gate-to-Source Voltage ± 20 V

  • IAR Avalanche Current 62 A

  • EAR Repetitive Avalanche Energy 20 mJ

  • dv/dt Peak Diode Recovery dv/dt 5.0 V/ns

Download Shodagor mobile app for quick order. Install App
MOQ: 20
Buy Now Start Order

  Contact Seller

IRF3205 Power MOSFET

  •  Reasonable price
  • Durable and practical
  • Transistor Polarity: N-Channel
  • Mounting Style: Through Hole
  • Product Category: MOSFET
  •  Pd – Dissipation: 150 W

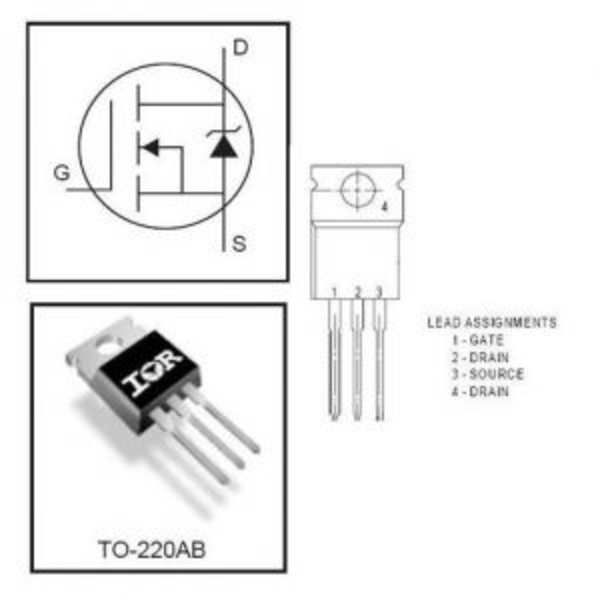

Advanced HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
