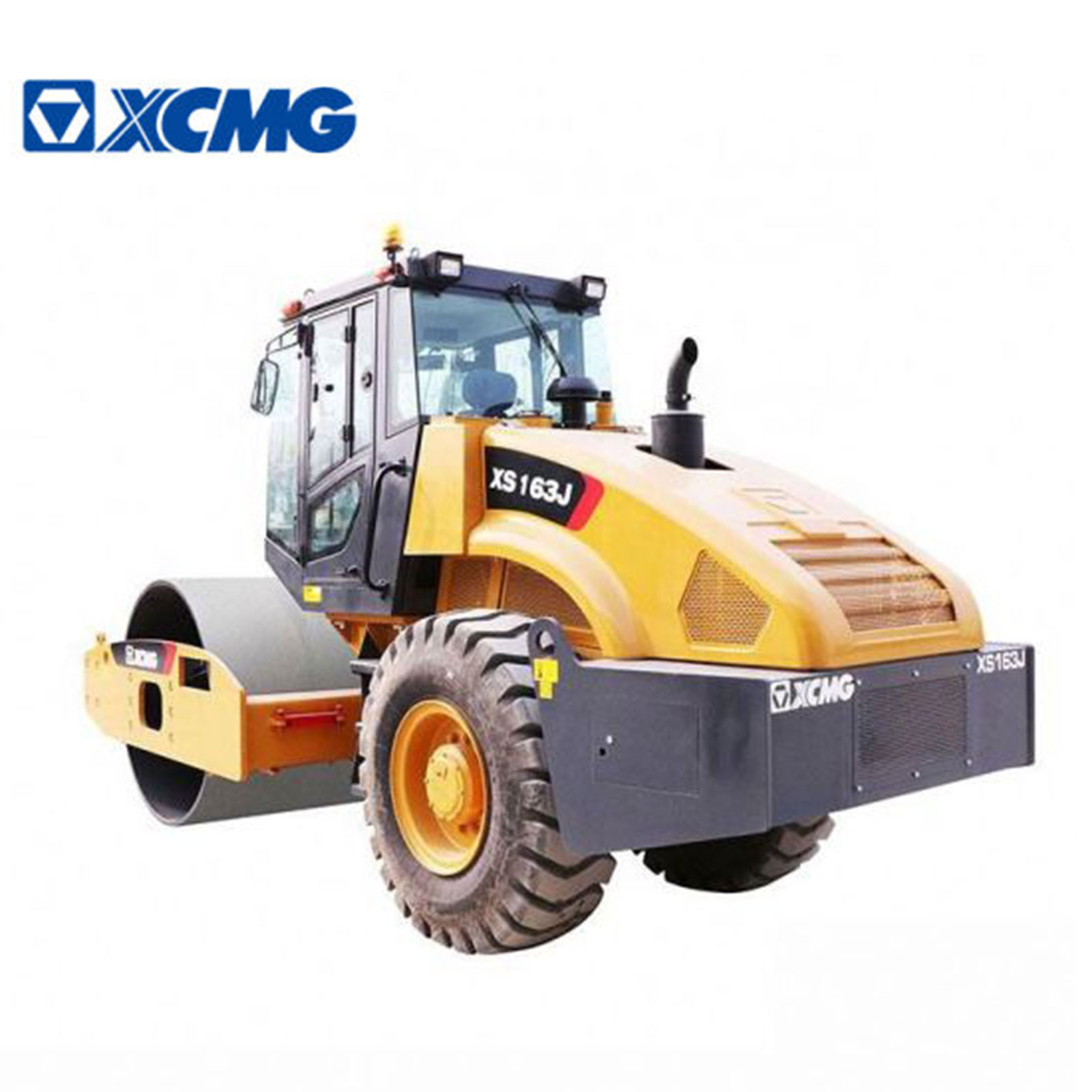

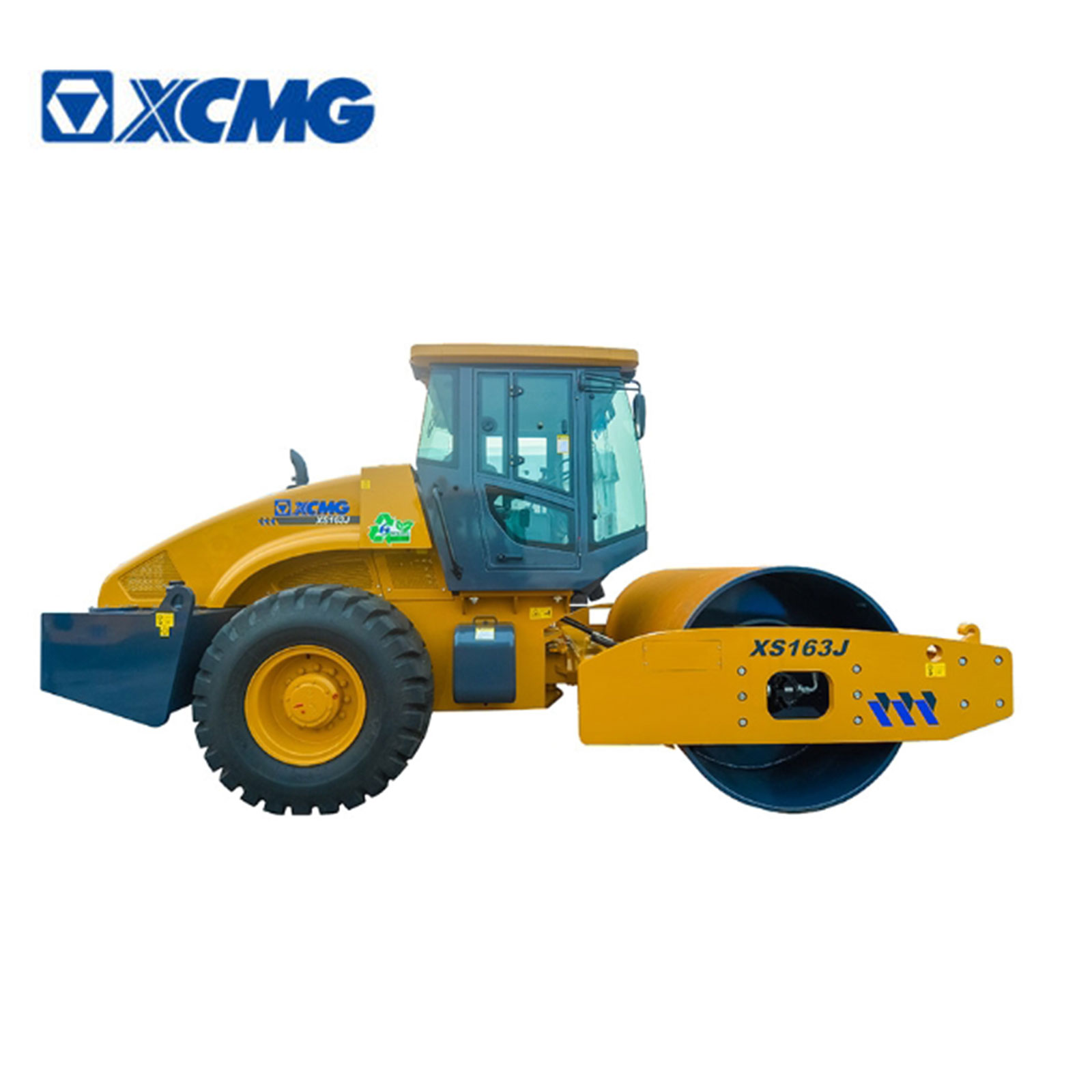

XCMG 16ton Hydraulic Single Drum Vibratory Road Rollers Compactor Xs163J

৳ 1.00 Per Unit

In stock

Product Details:

  • Product Type: Roller Machine
  • Brand: XCMG
  • Model: Xs163J
  • Operating Weight: 16000kg
  • Vibration Frequency: 28/33Hz
  • Exiting Force: 290/145kn
  • Compacting Width: 2130mm
  • Load applied on front drum: 7700 kg
  • Static linear load: 362N/cm
  • Speed range: F/R km/h
  • Theoretical gradeability: 30 %
  • Min. outer turning radius: 6500 mm
  • Max. power: 118 kW
  • Hydraulic tank capacity: 170 L
  • Fuel tank capacity: 310 L
  • Specification6150*2340*3200mm
Download Shodagor mobile app for quick order. Install App
MOQ: 1
Start Order

  Contact Seller

XS163J has a very high static line load and exciting force and is suitable for the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc, and it is also suitable for the compaction of concrete and stabilized soil base materials in various large projects, with the maximum working depth up to 1.0m and above. Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.

Simple operation

The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance. Adopt the gearbox with a synchronizer, which is easy to operate. The special compactor drive axle has the function of preventing slipping, featuring strong traction.

Reliable and durable hydraulic system

The standard configuration includes an imported open gear pump and motor. The optional configuration includes a closed hydraulic vibration system, imported piston pump, motor (16T, 18T). All those have a long service lifespan, supplying stable start-oscillation and oscillation stop and high compacting quality.

Energy-saving and environmentally friendly power

Shanghai diesel engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly at low temperatures.

High efficient and reliable vibratory compacting system

Unique drum structure features good rigidity and intensity. The bearing adopts a short cylindrical bearing, featuring a high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
