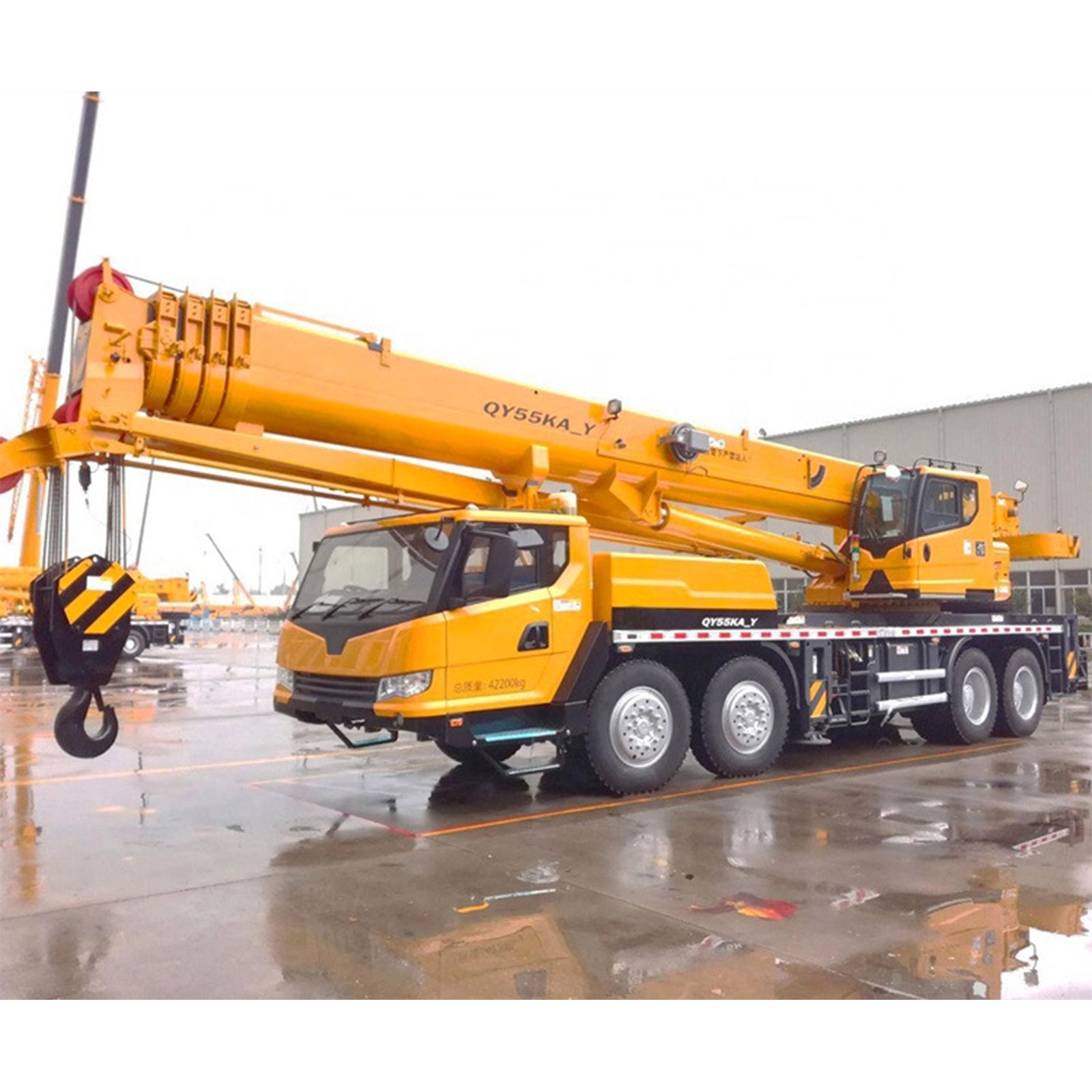

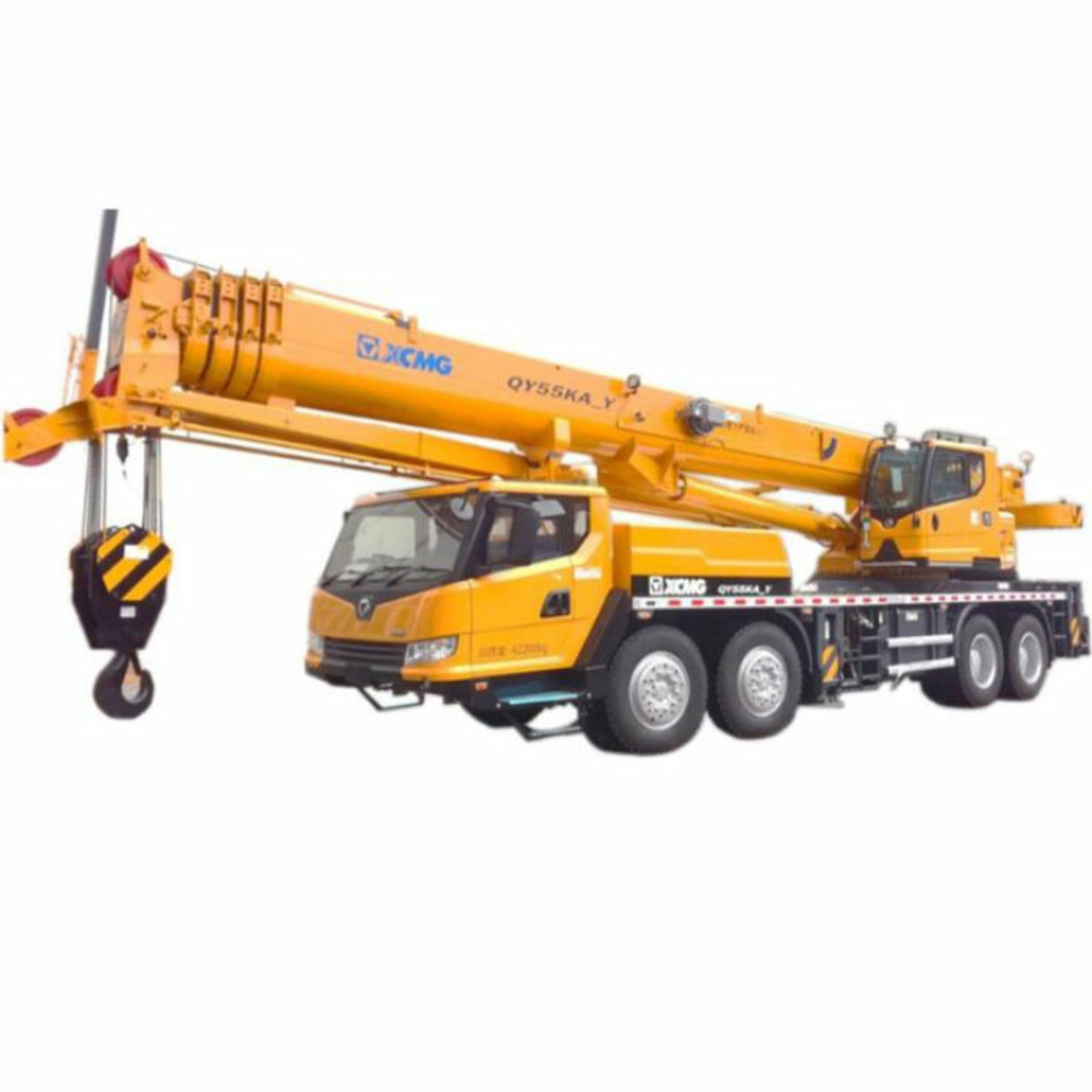

XCMG 55 Ton Crane Truck Hydraulic Truck Crane QY55KA_Y

৳ 1.00 Per Unit

In stock

Product Details:

  • Product Type: Truck Crane
  • Brand: XCMG
  • Model: QY55KA_Y
  • Total length: 13100 mm
  • Total width: 2750 mm
  • Total height: 3350 mm
  • Total weight in a traveling state: 38580 kg
  • Front axle load: 12950 kg
  • Rear-axle load: 25630 kg
  • Max. travel speed: 66 75 Km/h
  • Min.turning diameter: 24 24 mm
  • Min. ground clearance: 285 285 mm
  • Approach angle: 16 16°
  • Departure angle: 11 11°
  • Max. gradeability: 27 46%
  • Fuel consumption of 100km: 42 42 L
  • Max. lifting capacity: 50 ton
  • Min. rated working radius: 3 m
  • Turning radius at swing table tail: 3482 m
Download Shodagor mobile app for quick order. Install App
MOQ: 1
Start Order

  Contact Seller

XCMG QY55KA_Y  crane truck hydraulic 55-ton truck crane

XCMG QY55KA_Y newly upgraded 55-ton truck crane with a compact structure and the highest operating performance in the industry.

Leading lifting and driving performances

Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.

High-power engine with good dynamic performance, strong gradeability, and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.

Reliability of heat dissipation, electrical system, etc. has been improved with safer operation and driving

Waterproof connector clip. It is equipped with a rubber sheath inside with excellent water impervious and the level of protection reaches IP65.

Mature and reliable double-pump confluence technique, maintaining the advantages of efficient operation

The double-pump confluence technique is adopted in raising and falling of winch, extending and retracting of lazy boom and luffing, leading ahead of luffing and extending and retracting operations.

Air-aid shift gears and 45% of shifting force is reduced

The boost system will work only by stepping on the clutch that effectively avoids the gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.
