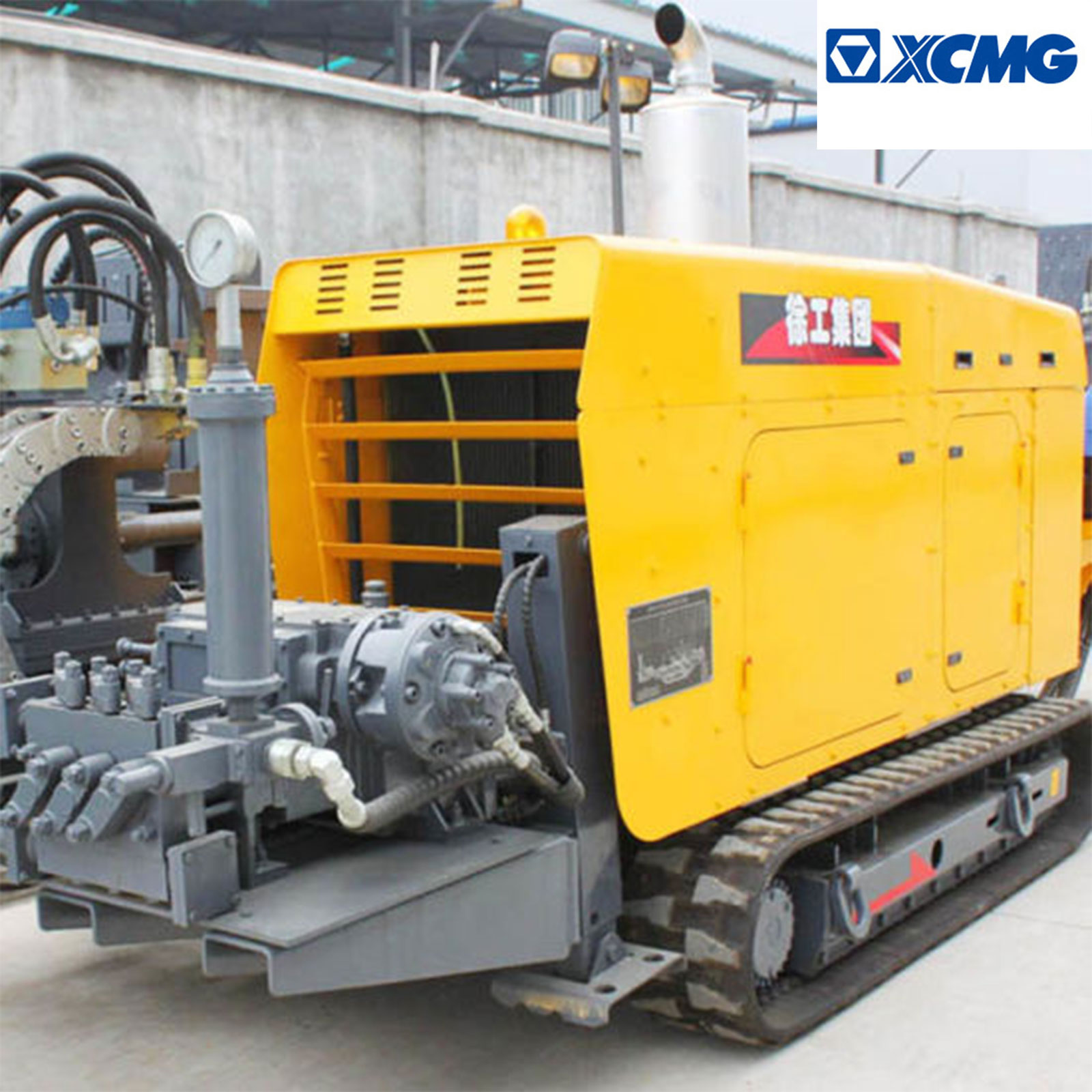

XCMG Brand New Slurry Dry Cleaning Machine HDD Xz200
- Brand: XCMG
৳ 1.00 Per Unit
- Product Type: Slurry Dry Cleaning Machine
- Brand: XCMG
- Model: XZ200
- Max.spindle torque: 6350 N.m
- Spindle speed: 0-155 r/min
- Spindle traveling speed: 0-26 m/min
- Max.backreaming diameter: 600 mm
- Pipe length(single: 3 m
- Pipe diameter: 60 mm
- Entry angle: 10-22
- Max.mud flow rate: 200/250L/min
- Max.mud pressure: 80 bar
- Dimension LxWxH: 6200x2250x2400 mm
- Overall weight: 8.5 ton
- Engine model: 6BTAA5.9-C150
- Engine power: 112KW
- Thrust-pull mode: Rack and pinion
- Max.pullback/thrusting: 200/200 KN
XZ200 horizontal directional drilling rig, which has a compact structure and attractive appearance, adopts various advanced technologies and the proprietary technologies of the company, and its main performance parameters and control technologies have reached the world advanced level. The main components of the hydraulic system, electrical system, and transmission system are of a top-grade domestic and international brand and high reliability.
Stable chassis support, using the classical H type beam structure, quality rubber track, frog Outrigger, provides a strong guarantee for the stability of construction.
Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling, and other devices, can also be optioned more Eco Saving Cummins with EU Stage 3A.
Automatic handling device of drill rod: This can improve efficiency, and reduce the operators’ labor intensity and the number of construction personnel.
