XCMG Brand New XE135B 13ton Hydraulic Multifunction Crawler Excavator, Bucket capacity(m³): 0.4-0.52, operation weight(KG):13000, Engine Model: BB-4BG1TRP

৳ 0.00 Per Unit

In stock

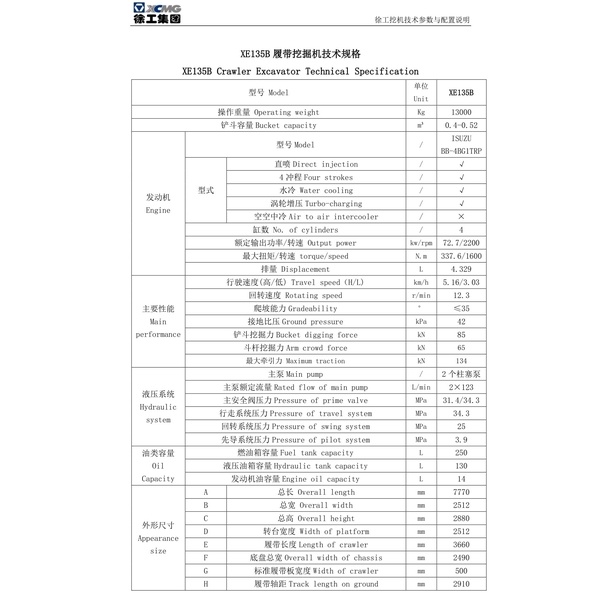

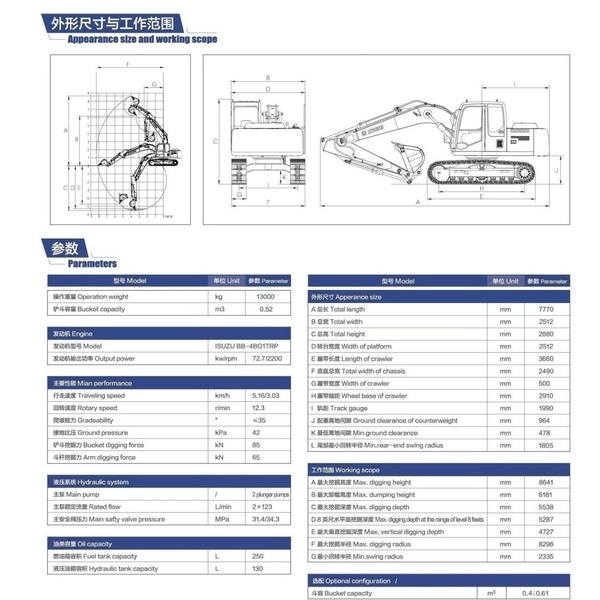

Technical Parameters:

  • Brand: XCMG
  • Model NO: XE135B
  • Certification: ISO9001: 2000
  • Specification: 7770*2512*2880mm
  • Max. Digging Height: 8641mm
  • Max. Digging Depth: 5538mm
  • Min. Swing Radius: 2335mm
  • Size: Medium-Sized
  • Condition: New
  • Max. Dumping Height: 6181mm
  • Max. Digging Reach: 8296mm
  • Transport Package: Comply with Export Packaging Requirements
  • Origin:Xuzhou, Jiangsu, China
  • Engine Model: BB-4BG1TRP
  • Engine No. of cylinders: 4
  • Engine Output power(kw/rpm): 72.7/2200
  • Engine torque/speed(N.m): 337.6/1600
  • Engine Displacement( L): 4.329
  • Main pump: 2
  • Rated flow of main pump(L/min): 2×123
  • Pressure of prime valve(MPa): 31.4/34.3
  • Pressure of travel system(MPa): 34.3
  • Pressure of swing system(MPa): 25
  • Pressure of pilot system(MPa):3.9
  • Hydraulic Oil Tant Capacity(L): 130
  • Fule Oil Tant Capacity(L): 250
  • Engine Oil Tank Capacity(L): 14
  • Overall length(mm): 7770
  • Overall width(mm): 2512
  • Overall height(mm): 2880
  • Width of platform(mm): 2512
  • Length of crawler(mm): 3660
  • Overall width of chassis(mm): 2490
  • Width of crawler(mm):500
  • Track length on ground(mm): 2910
  • Crawler gauge(mm): 1990
  • Clearance under counterweight(mm): 964
  • Min. ground clearance(mm): 478
  • Min. tail swing radius(mm): 1805
  • Max.Digging Height(mm): 8641
  • Max.Dumping Height(mm): 6181
  • Max.Digging Depth(mm): 5538
  • Max. vertical wall digging depth(mm): 4727
  • Max. digging reach(mm): 8296
  • Min. swing radius(mm): 2335
  • Length of boom(mm): 4600
  • Length of arm(mm): 2510
  • Bucket capacity(m³):0.52
  • Bucket capacity(m³): 0.4
Download Shodagor mobile app for quick order. Install App
MOQ: 1
Start Order

  Contact Seller

XCMG Brand New Xe135b 13ton China Hydraulic Multifunction Crawler Excavator

XE135B featuring high efficiency and energy conservation is mainly used for earth working conditions. The powerful Isuzu BB-4BG1TRP engine and high-end Kawasaki hydraulic system are matched perfectly, which can guarantee the product reliability and define the HGH-efficiency operation and fuel economy. With strengthened structural parts, it is applicable for earth working, road construction, and municipal engineering, and allow you to get digging and loading operations are done easily.

1. Environmentally friendly and energy saving

* Customized high-power engine is more powerful,

* Adopting XCMG’s proprietary matching technology to achieve higher operational efficiency and lower fuel consumption.

* Minimized impact on emission systems and make it more environmentally friendly.

2. Multiple applications

* Different boom, arm and bucket combinations can provide excellent all-around versatility.

*Multi-functional work tool system can meet various operational requirements including digging, breaking, and so on.

3. Comfortable operating experience

* Air conditioner and heater ensure the appropriate temperature.

* Rear camera and right camera provide a  XCMG Brand New XE135B 13ton Hydraulic Multifunction Crawler Excavatorbetter view.

* Air-suspension seat equipped with electric heating function.

* Integrated control panel and large display screen provide multiple information.

Additional information

Weight 13000 kg
