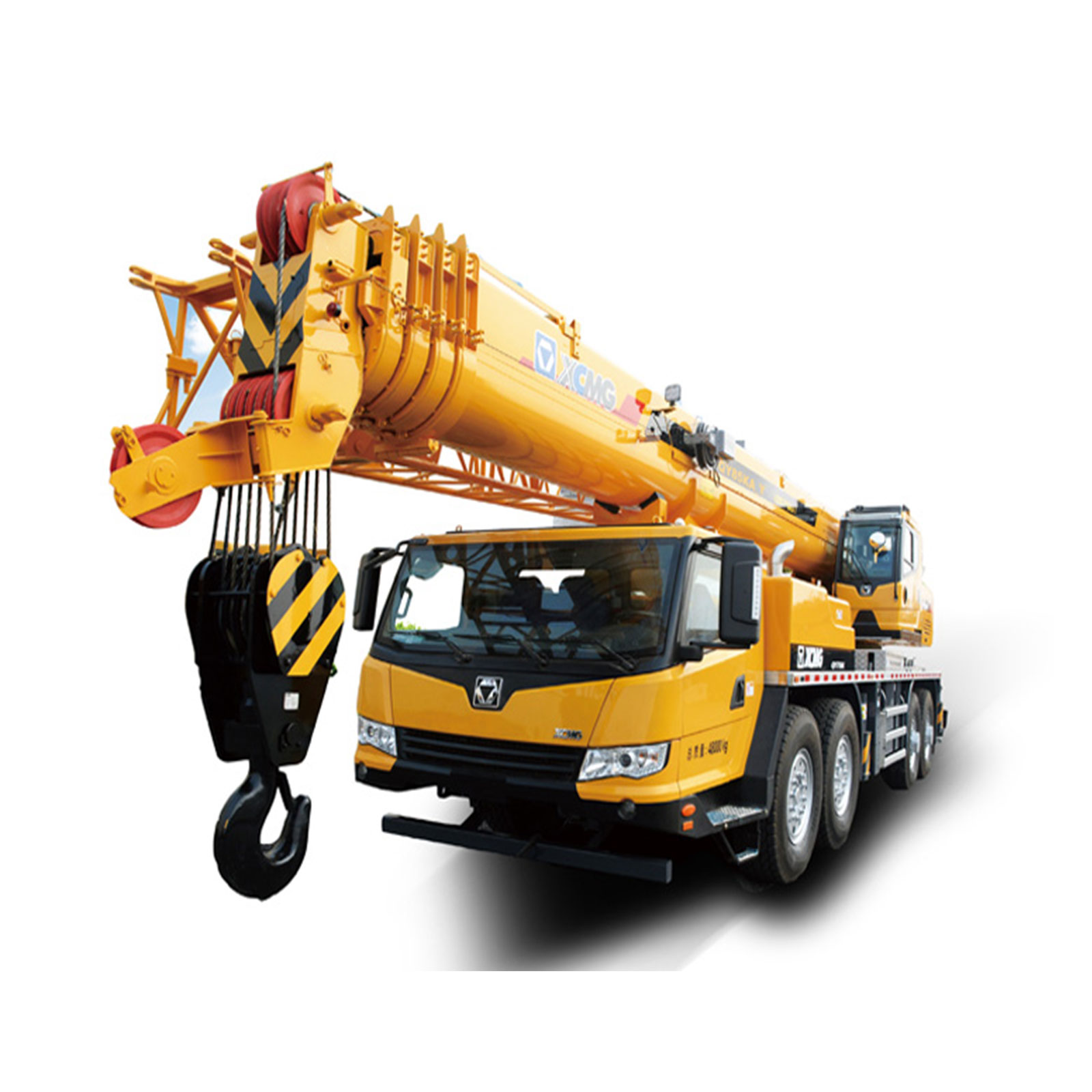

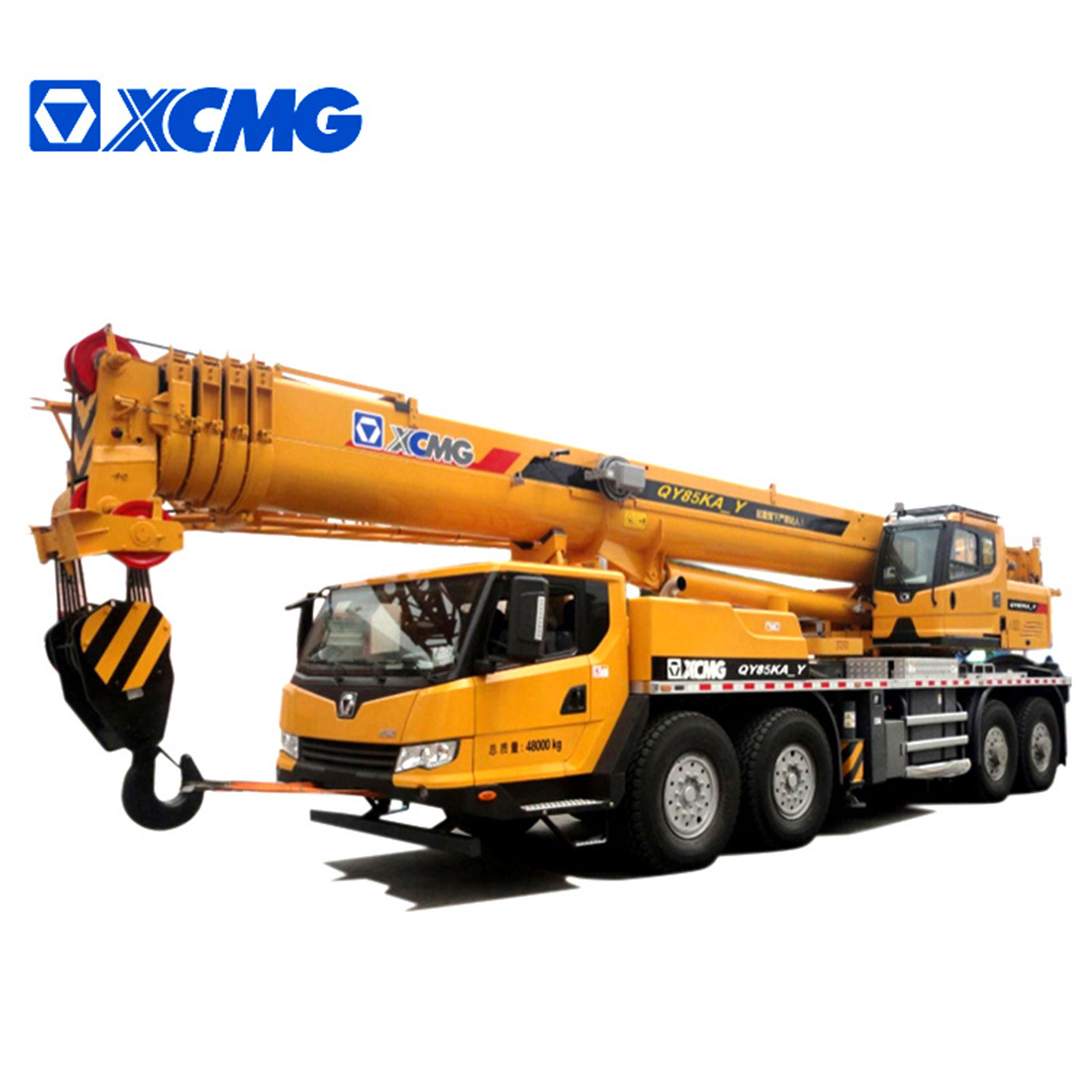

XCMG Hydraulic 85ton Crane Truck Mounted Crane QY85KA-Y

৳ 1.00 Per Unit

In stock

Product Details:

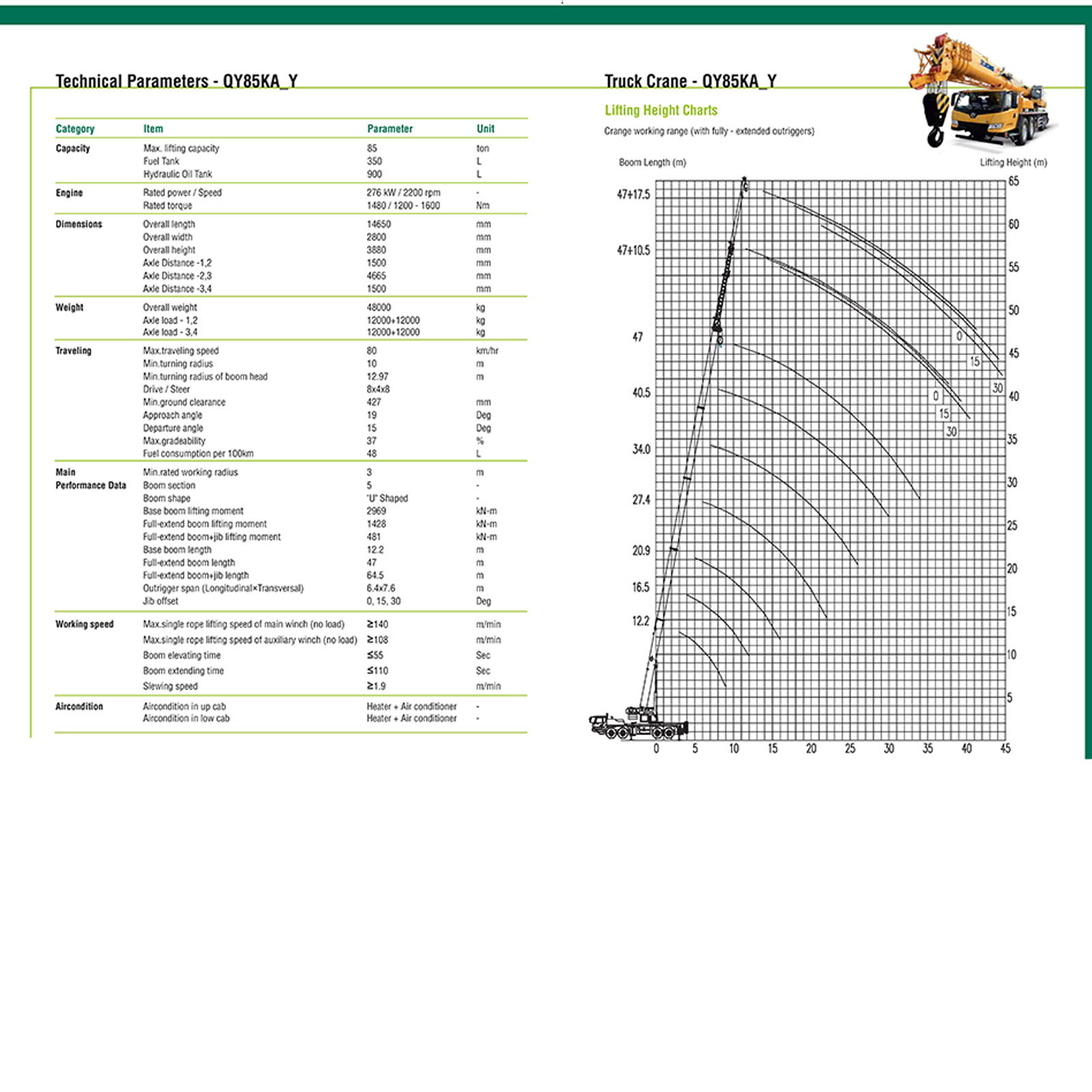

  • Product Type: Truck Crane
  • Brand: XCMG
  • Model: QY85KA-Y
  • Max Lifting Capacity: 85 Ton
  • Axle Distance First or Second: 1500 mm
  • Axle Distance Second or Third: 4665 mm
  • Axle Distance Third or Fourth: 1500 mm
  • Axle Load First or Second: 12000+12000 kg
  • Axle Load Third or Fourth: 12000+12000 kg
  • Base Boom Length: 12.2 m
  • Base Boom Lifting Moment: 2969 kN-m
  • Boom Section: 5
  • Boom Shape: “U” Shaped
  • Departure Angle: 15 Deg
  • Drive Steer: 8x4x8
  • Engine Rated Power Speed: 276 kW / 2200 rpm
  • Engine Rated torque: 1480 / 1200 – 1600 Nm
  • Fuel Consumption: 48 L (per 100km)
  • Fuel Tank Capacity: 350 L
  • Full Extend Boom Jib Length: 64.5 m
  • Full Extend Boom Jib Lifting Moment: 481 kN-m
  • Full Extend Boom Length 47 m
  • Full Extend Boom Lifting Moment: 1428 kN-m
  • Hydraulic Oil Tank Capacity: 900 L
  • Jib Offset: 0,15,30 Deg
  • Max Gradeability: 37%
  • Max Traveling Speed: 80 km/hr
  • Min Ground Clearance: 427 mm
  • Min Rated Working Radius: 3 m
  • Min Turning Radius: 10 m
  • Min Turning Radius of Boom Head: 12.97 m
  • Outrigger Span LongitudinalxTransversal: 6.4×7.6 m
  • Overall Height: 3880 mm
  • Overall Length: 14650 mm
  • Overall Weight: 48000 kg
  • Overall Width: 2800 mm
Download Shodagor mobile app for quick order. Install App
MOQ: 1
Start Order

  Contact Seller

 XCMG Hydraulic 85ton Crane Truck Mounted Crane QY85KA-Y

Optimized structure design with the largest lifting capacity in the industry. Mature hydraulic control variable pump with load sensitive filter technology and the multi-way valve of large drift diameter contributes to lesser heating, high efficiency, and reliable stability. Improved reliability of key systems like Hoisting, Winch monitoring, Outrigger pressure inspection, and ABS system contributes to safer operation while traveling. Multi-axle, Multimode steering technology with tight turning radius mode, Crabwalk mode, Rear axle locked mode makes the vehicle more flexible while traveling. Humanized design giving more comfort to the operator.

Working Speed:

Max. single rope lifting speed of main winch (no load) ≥140 m/min

Max. single rope lifting speed of auxiliary winch (no load) ≥108 m/min

Boom elevating time ≤55 Sec

Boom extending time ≤110 Sec

Slewing speed ≥1.9 m/min
