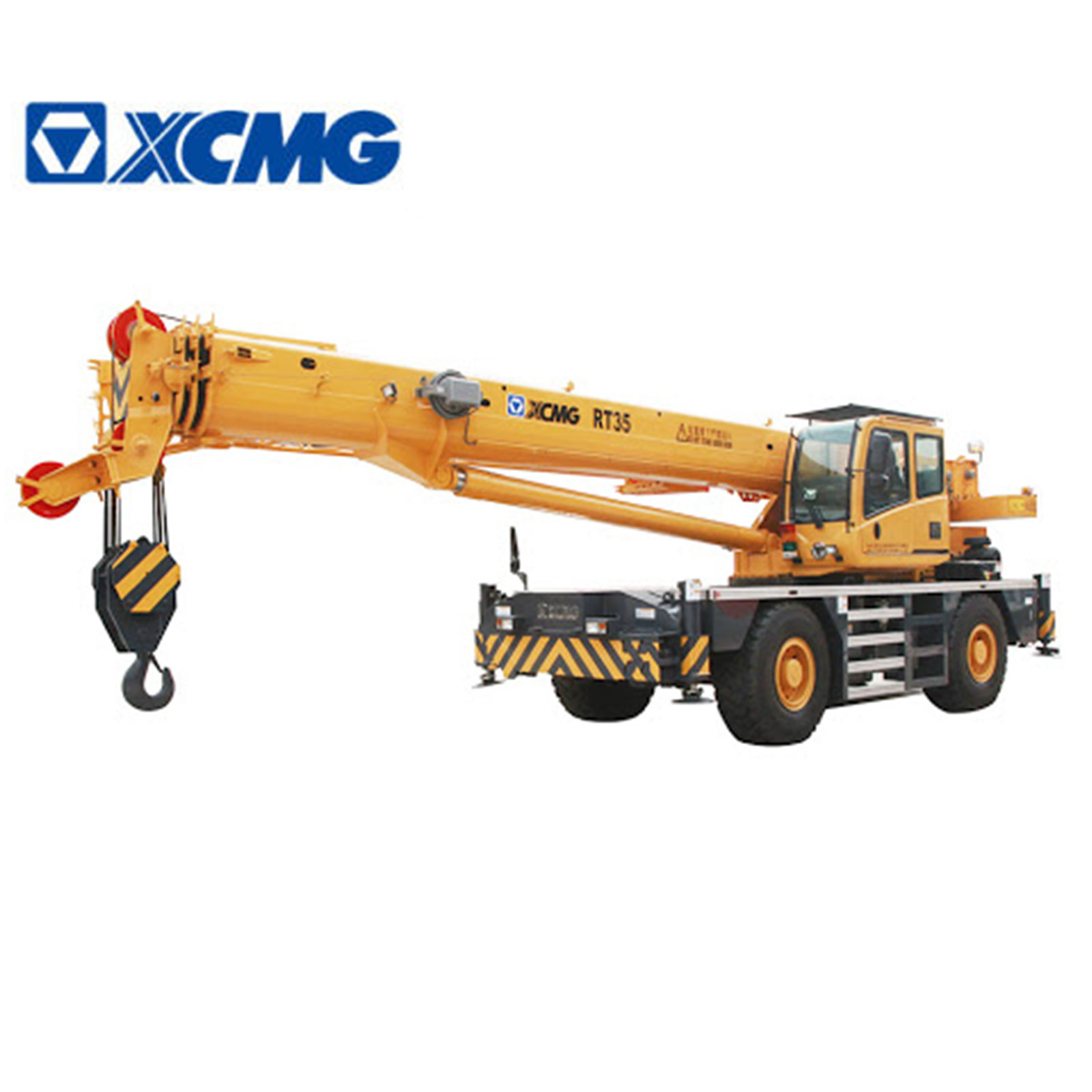

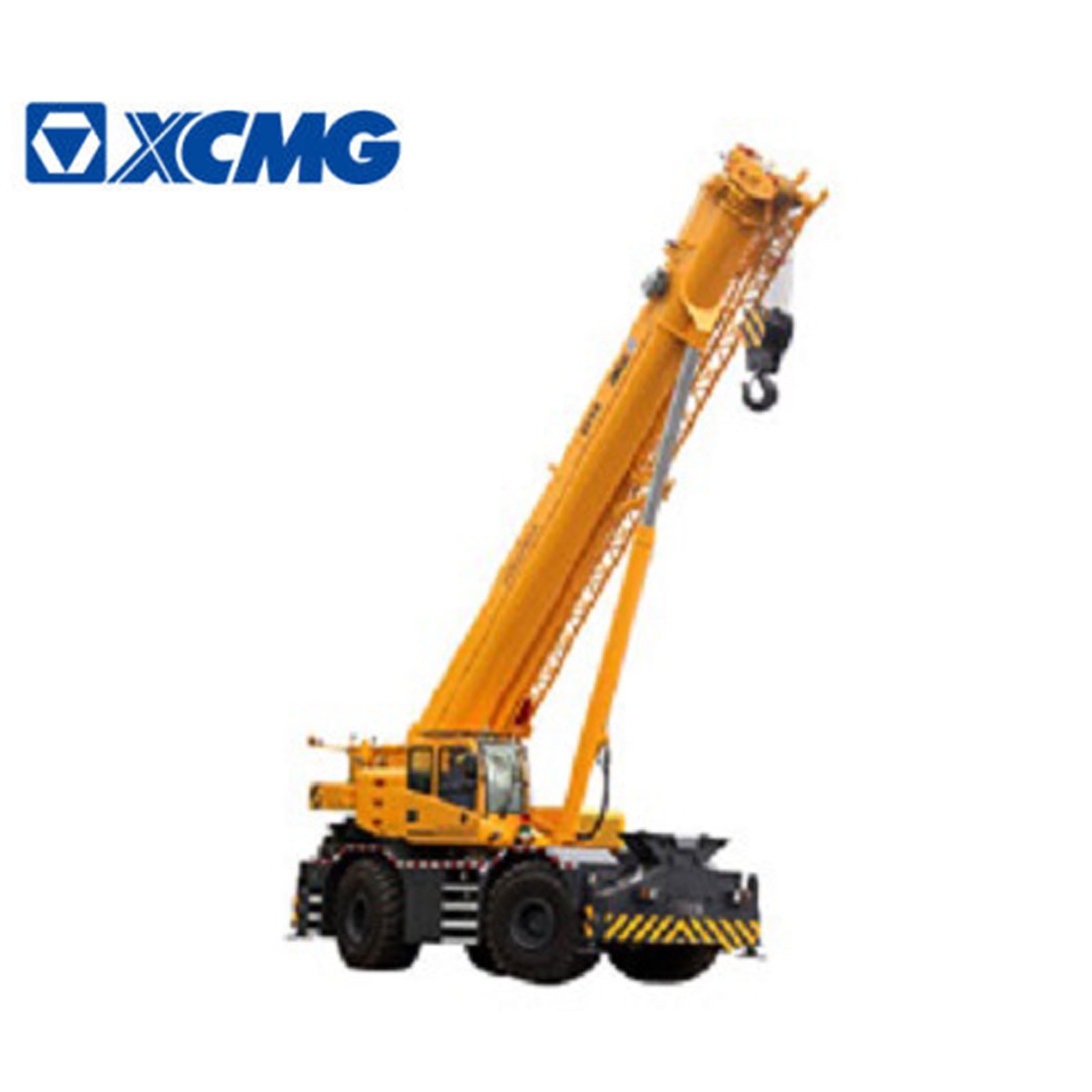

XCMG Official 35 Ton Rough Terrain Crane Rt35

৳ 1.00 Per Unit

In stock

Product Details:

  • Product Type:  Rough Terrain Crane
  • Brand: XCMG
  • Model: Rt35
  • Max. Total Rated Lifting Load: 35000 KG
  • Max. Load Moment of Base Boom: 1445.5 kN/m
  • Rated Power: 142 kW @ 2200 RPM
  • Deadweight in Travel State: 30300 KG
  • With Dongfeng Cummins engine
  • Germany ZF transmission
  • With Meritor Axle (China Origin)
  • 20.5R25 tyre,
  • The main boom of 10.1- – 32m
  • Two Section Jib Max.15m
  • Air conditioner cab
  • The hydraulic pilot control system
  • Hirschmann Load moment limiter
  • 35ton & 4ton hook
  • Overall length: 11952 mm
  • Overall width: 2980 mm
  • Overall height: 3450 mm
  • Wheelbase: 3700 mm
Download Shodagor mobile app for quick order. Install App
MOQ: 1
Start Order

  Contact Seller

RT35 is equipped with the two-axle loading chassis, which has two types of drive modes, four types of steering modes, and backward-forward driving functions. It also has four sections of dodecagon main booms, H-type outrigger, fixed balance counterweight, as well as three working modes, including hoisting with the support of outriggers, hoisting with the support of tire, and hoisting when driving. It is widely used in the oil fields, mines, road and bridge construction, warehousing base, and other construction sites.

Strong Power of Hoisting, Wide Range of Work

It has 32m main booms, 15m auxiliary booms, with the longest booms, highest comprehensive hoisting performance in the product of the same tonner.

Maneuvering and Flexible, Quick and Efficient

The max speed reaches 38km/h and the max gradeability is 55% and the min. turning radius is 5.7m. All these three factors make it flexible.

Safe and Reliable, No Worry to Handle

The product is equipped with a lifting protection control system in case of overload, over-retracting, and over-stretching as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving automatic protection system. All these elevate its safety performance largely.

The product is equipped with top features in this field, professional matching upgrading, and a systematic evaluation test. And it has passed tests like driving 11,000km and 10,000 times hanging. Both ensure its reliability.

 Economic and Environmental Protection, with Cost Saving

The product is equipped with an optical matching power transmission system and torque converter with lockout function, which decreases the oil consumption by over 20% at high speed.

The one-way stabilized current control of parallel hydraulic pressure system reduces the loss of flow; the gravity drop luffing system needs no extra power and saves oil consumption.

Comfortable to Handle, Convenient to Operate

The product is equipped with the full hydro-steering control system and automatic-manual gearbox, which make it easy to handle. And the compounded suspension of leaf spring and hydraulic oil tank, and the self-recognition phased control of rotary cushion technology make the operation stable and comfortable;

The product is equipped with a humanized climb ladder, maintenance access, and control layout. And it is equipped with professional man-machine engineering simulation analysis; exquisite man-machine interface and stand-alone fault diagnosis function. It is comfortable to handle and convenient to operate.
