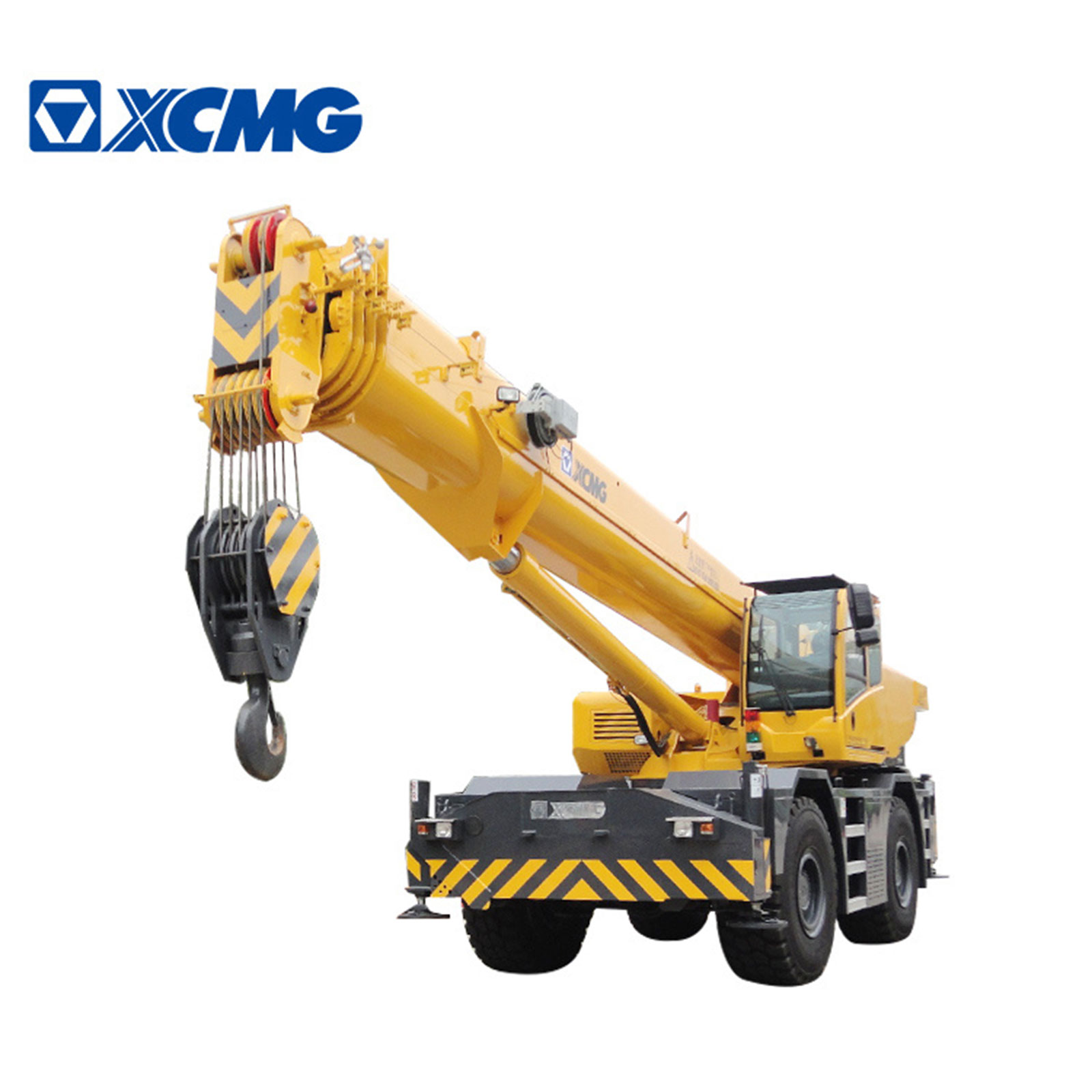

XCMG Official 50 Ton Rough Terrain Crane Rt50A
- Brand: XCMG
৳ 1.00 Per Unit
In stock
Product Details:
- Product Type: Rough Terrain Crane
- Brand: XCMG
- Model: RT50A
- Max. Total Rated Lifting Load: 50000 KG
- Max. Load Moment of Base Boom: 2058 kN/m
- Rated Power: 142 kW @ 2200 RPM
- Deadweight in Travel State: 36300 KG
- Overall Length: 12032mm
- Overall Width: 2980mm
- Overall Height: 3530mm
- Total Weight in Travel: 38500kg
- Base boom max.load moment: 1690 kn.m
- Base boom: 10.3 m
- Full-extended boom: 38.2 m
- Full-extended boom+Jib: 55 m
RT50 is equipped with the two-axle loading chassis, which has two types of drive modes, four types of steering modes, and backward-forward driving functions. It also has four sections of dodecagon main booms, abdomen-placed auxiliary boom, H-type outrigger, fixed balance counterweight, as well as three working modes, including hoisting with the support of outriggers, hoisting with the support of tire, and hoisting when driving. It is widely used in the oil fields, mines, road and bridge construction, warehousing base, and other construction sites.
Strong Power of Hoisting, Wide Range of Work
It has 34.5m main booms, 16m auxiliary booms, with the comprehensive hoisting performance about 5%-10% higher than the four sections product of the same tonner in the industry.
Maneuvering and Flexible, Quick and Efficient
The max speed reaches 37km/h and the max gradeability is 55% and the min. turning radius is 5.7m. All these three factors make it flexible.
Safe and Reliable, No Worry to Handle
The product is equipped with a lifting protection control system in case of overload, over-retracting, and over-stretching as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving automatic protection system. All these elevate its safety performance largely.
The product is equipped with top features in this field, professional matching upgrading, and a systematic evaluation test. And it has passed tests like driving 11,000km and 10,000 times hanging. Both ensure its reliability.
