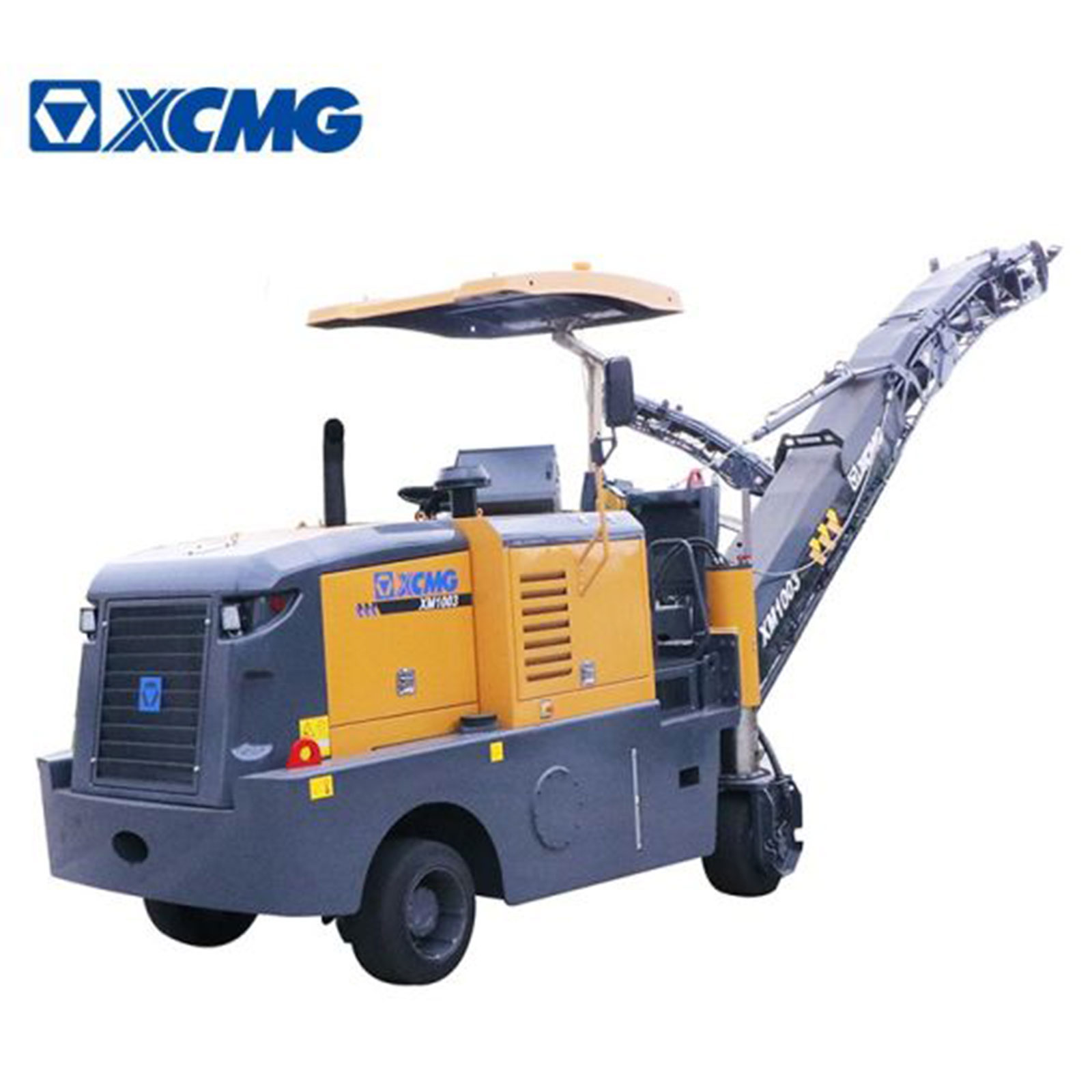

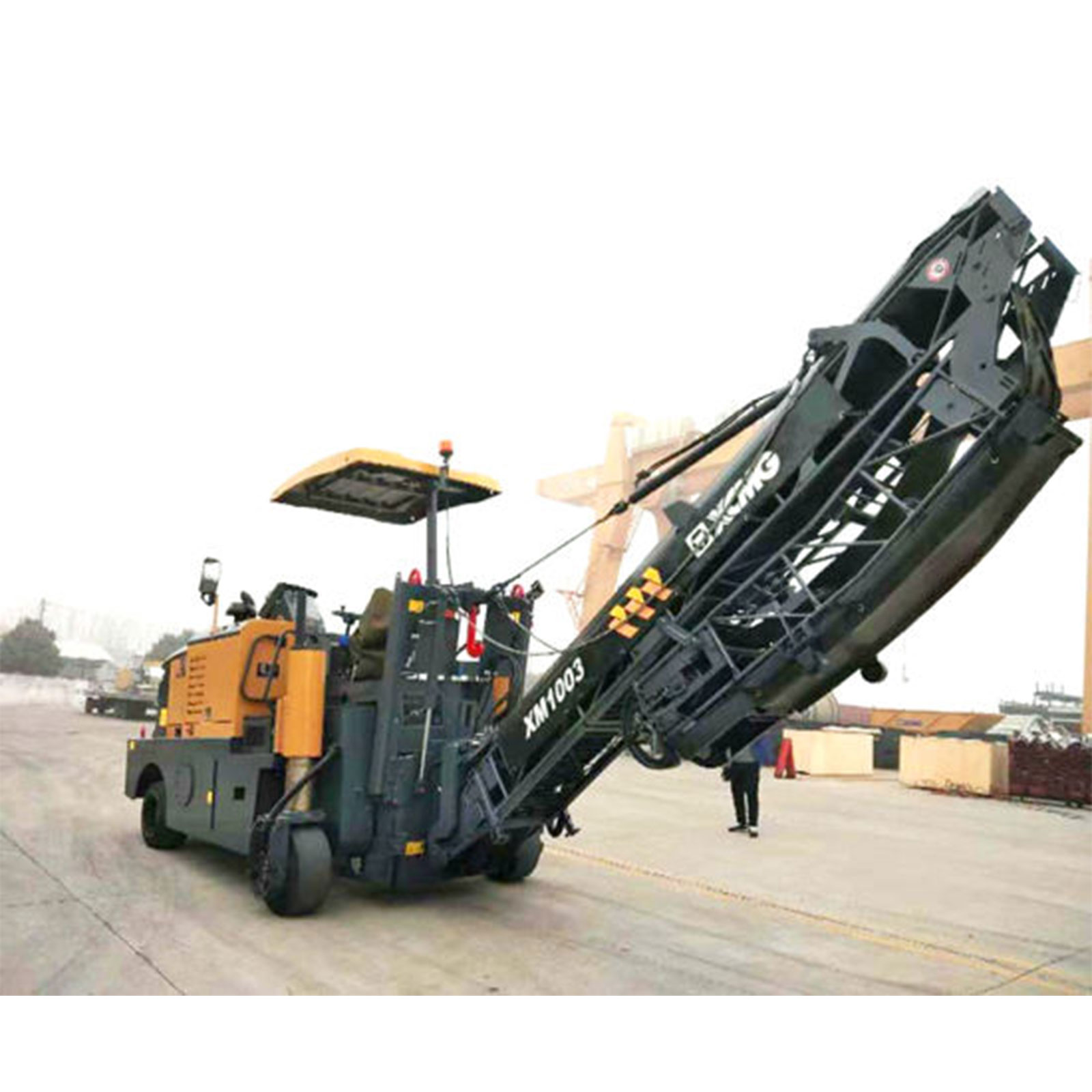

XCMG Official Manufacturer Xm1003 Cold Milling Machine

৳ 1.00 Per Unit

In stock

Product Details:

  • Product Type: Milling Machine
  • Brand: XCMG
  • Model: Xm1003
  • Shangchai engine 162kw
  • Milling width 1000mm
  • Milling depth 180mm
  • Number of teeth: 82
  • Max. operation speed 45 m/min
  • Max. travel speed 8 km/h
  • Tire Type: Solid rubber
  • Operating speed m/min: 0-13
  • Travel speed Km/h: 0-13
  • Gradeability %: 20
  • Ground clearance mm: ≤120
  • Operating weight Kg: 13500
  • Max. milling and mixing width mm: 1020
  • Max. milling and mixing depth mm: 120
  • Milling drum diameter mm: 660
  • complete dimension(L*W*H) mm: 4371*2294*3130
Download Shodagor mobile app for quick order. Install App
MOQ: 1
Start Order

  Contact Seller

Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency. Compact three-wheeled machine with front-wheel drive. The advance speed is infinitely variable in both gears which can be suitable for the requirement of different working conditions. The front steering driving axle has a large steering angle and a small turning radius that can mill along with the manhole covers. The high-strength and high wear resistance imported cutter head and cutter rest have a long service life and low construction cost. The imported hydraulic elements have high working reliability. Excellent welting milling performance with the right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation. Handheld breakers and rumble strip equipment can be selected.
