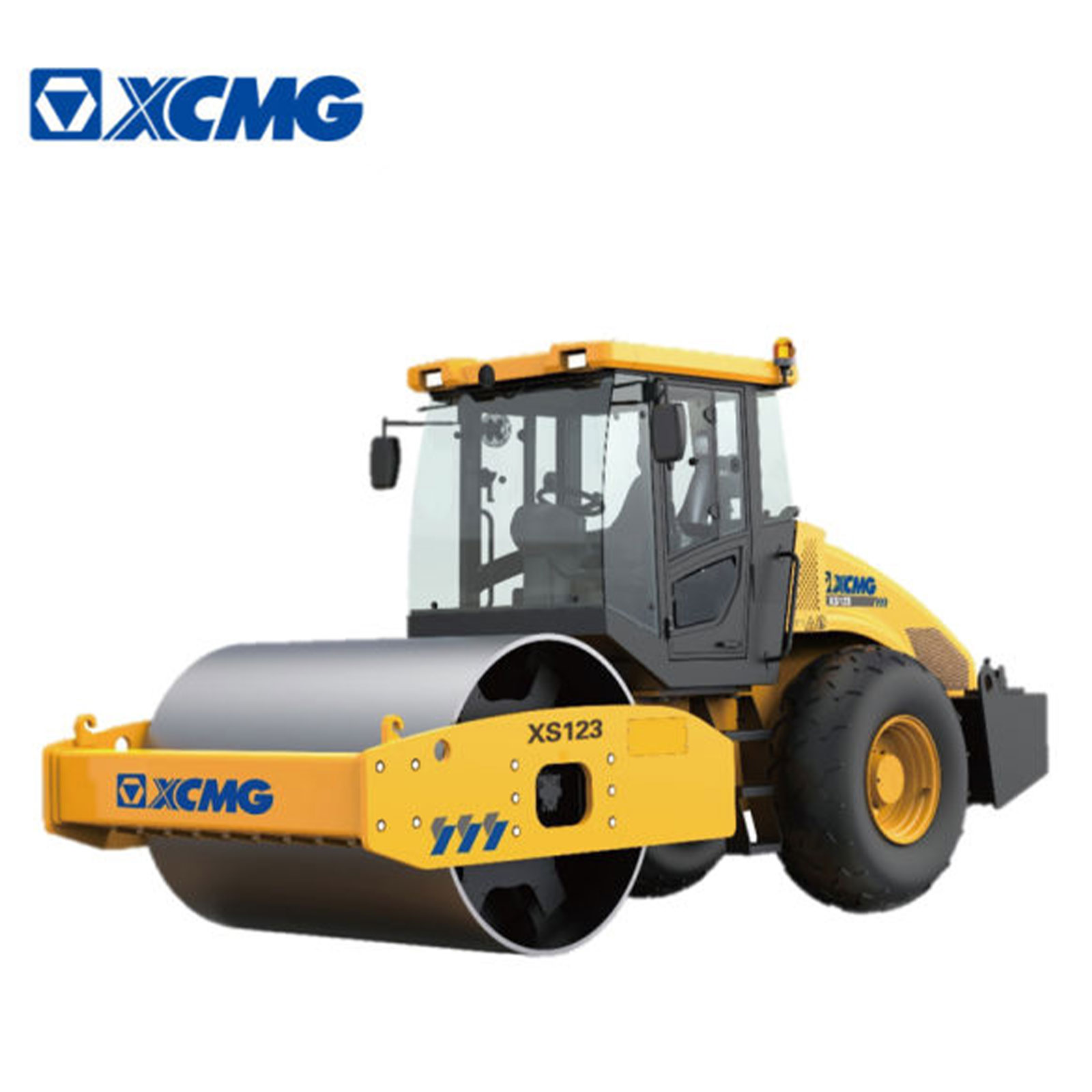

XCMG Official XS123 12 ton single drum vibratory road roller machine compactor

৳ 1.00 Per Unit

In stock

Product Details:

  • Product Type: Single Drum Roller
  • Brand: XCMG
  • Model: XS123
  • Certification: ISO/CE
  • Drum: Single Drum Roller
  • Cummins Engine 93KW
  • Operation weight 12000kg
  • Cabin with AC
  • Drive-by both Front and rear wheels
  • Hydraulic control system
  • Power: 93kw
  • Grade Ability: 45%
  • Work weight: 12000  kg
  • Front-wheel mass distribution: 6700 kg
  • Rear-wheel mass distribution: 5300 kg
  • Static linear pressure: 308 N/cm
  • Vibration frequency: 30/35 Hz
  • Nominal amplitude: 1.8/0.9 mm
  • Exciting force: 280/190 kN
  • Speed range: 0-10.4 km/h
  • Wheelbase: 3010 mm
  • Compaction width: 2130 mm
  • Dimensions: 5940×2300×3150 mm
Download Shodagor mobile app for quick order. Install App
MOQ: 1
Start Order

  Contact Seller

XS123 single drum roller is medium, self-propelled, full-hydraulic vibratory roller, has the big exciting force, high compaction efficiency, good compaction quality, used mainly for compaction operation of base coarse, sub-base coarse, stone filling of high-speed railway, high-grade highway, airport, harbor, dams, and industrial construction site.

Hydraulic system

Adopt imported closed hydraulic drive system composed of variable displacement pump and motor to ensure better drive performance and gradeability.

Two gears infinitely variable speeds to ensure optimized working speeds under different working conditions.

Cummins engine

Equipped with Cummins electrical control engine, water-cooled, turbocharged with big power reservation, low oil consumption, small noises. Europe stage III emission standard.

Braking system

The braking system is made up of a drive axle, wet type brakes at the front drum speed reducer, and a brake of the closed hydraulic system. It owns traveling, parking, and emergency braking functions to ensure driving safety.
