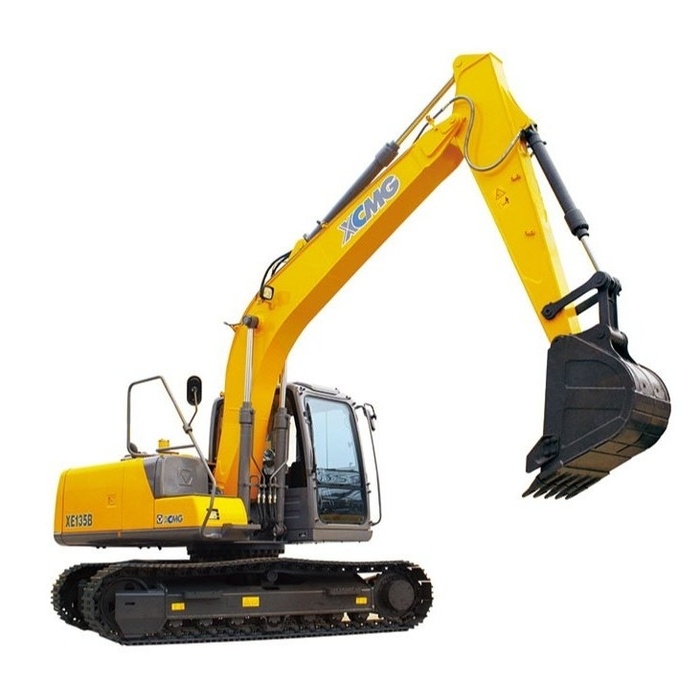

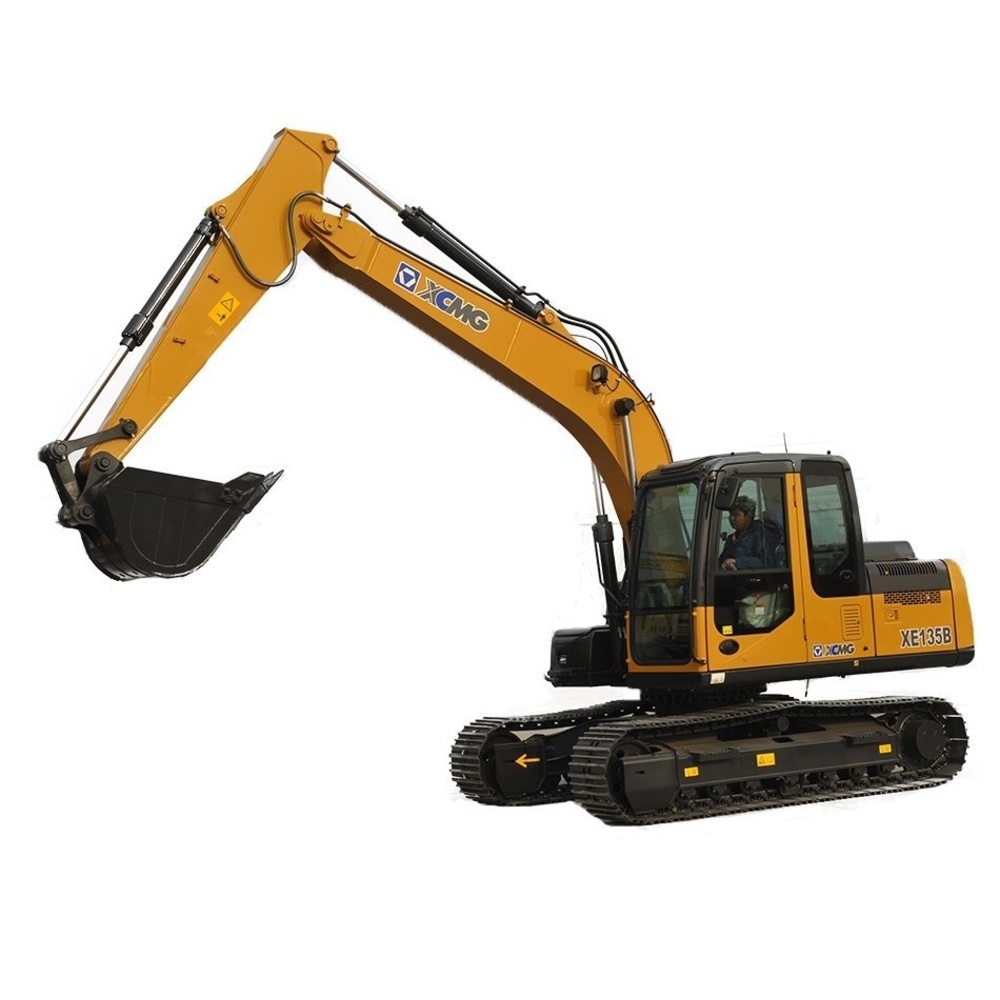

XCMG XE135B Crawler Excavator, 13 ton, 72.7 kW, Maximum Bucket Capacity 0.52 m³, Max digging depth 5538 mm, Engine Model ISUZU BB-4BG1TRP

৳ 0.00 Per Unit

In stock

Technical Parameter:

  • Brand: XCMG.
  • Excavator Model: XE135B.
  • Maximum Operating weight: 13000 kg.
  • Maximum Engine Power: 72.7 kW.
  • Maximum Bucket Capacity: 0.52 m³.
  • Max digging depth: 5538 mm.
  • Engine Max Torque: 337.6 N.m
  • No of Cylinder: 4.
  • Maximum Bucket Capacity: 0.52 m³.
  • Ground Clearance: 478 mm.
  • Swing Speed: 12.3 rpm.
  • Gradeability: 35°.
  • Travel Speed: 5.16 km/h.
  • Width of super structure: 2512 mm.
  • Track length on ground: 2910 mm.
  • Hydraulic Pump Minimum flow: 2 x 123 Ipm.
  • Max digging depth: 5538 mm.
  • Max digging height: 8641 mm.
  • Max digging reach: 8296 mm.
  • Maximum dumping height: 6181 mm.
  • Arm Length: 2510 mm.
  • Boom Length: 4600 mm.
  • Tail Swing Radius: 2294 mm.
  • Fuel Tank: 250 L.
  • Engine Oil: 14 L.
  • Hydraulic Tank: 130 L.
Download Shodagor mobile app for quick order. Install App
MOQ: 1
Buy Now Start Order

  Contact Seller

XE135B adopts the original imported Isuzu engine, which has strong power, green environmental protection, good fuel economy and high reliability. The hydraulic elements of the original imported international famous brand are of high efficiency, precise control, small impact and long service life. Combined with the new generation of XEICS intelligent control system independently developed by XCMG excavator, it can make full use of the output power of the engine and make full use of every drop of fuel. The main structural components are all optimized by FEA, and after long-term high-intensity operation assessment, the service life is longer. All the daily maintenance parts can be maintained on the ground, it can save time, labor and be safer. New injection-moulded cab is standard configured with double laminated glass, which can effectively block noise. Secondly, the cab uses an integrated control panel, the appearance is simple and stylish, the new silicone oil spring composite shock absorber, the all-round adjustable suspension seat, the operation is more comfortable.

By installing different attachments, the machine can be used for breaking, grabbing, drilling, compacting and bulldozing. It can not only be widely used for small earth and stone works, municipal engineering, road repair, concrete crushing, laying of buried cables, water pipes, botanical garden cultivation, dredging of the river ditch and other projects, but also has advantages in terms of transportation, energy consumption, flexibility and adaptability. It is very suitable for operations in small space construction sites.
