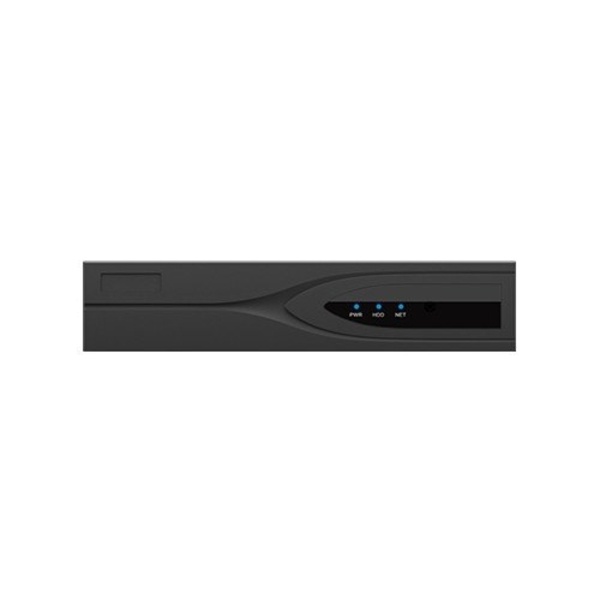

Z508NER : ZKTeco 08 Channel Network Video Recorder

৳ 0.00 Per Piece

In stock

PRODUCT INFORMATION

Model: Z508NER

System–

  • Processor: Multi-core Embedded Processor
  • Operation System: Embedded Linux

Display–

  • Interface: 1 HDMI, 1 VGA
  • OSD: Camera Title, Time, Video Loss, Motion Detection,
    Recording

Video Detection and Alarm–

  • Linkaged Events:
    • Alarm Out, Linkage Record, Snapshot, PTZ
    • Linkage, Tour, Show Message, Buzzer, Send
    • Email, FTP, Upload Cloud, Push Alarm
  • Motion Detection: MD Zones:396(22×18)

Playback and Backup–

  • Playback Channel: 8
  • Search Mode: Time/Date, MD and Exact Search, Smart Search
  • Playback Function: Play, Pause, Stop, Rewind, Fast Play, Slow
    Play, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection,
    Digital Zoom
  • Backup Mode: USB device/Network

Interface and Storage–

  • Network Interface: 1 RJ-45 port(10/100Mbps)
  • HDD: 1 SATA, up to 10TB capacity for each HDD
  • USB: 2xUSB 2.0

Audio and Video–

  • IPC Input Channel: 8
  • Two-way Talk: 1 Channel Input, 1 Channel Output, RCA.

Recording–

  • Video Compression: H.265+/H.265/H.264+/H.264
  • Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080P/ 1.3MP/720P
    etc.
  • Incoming Bandwidth: 48Mbps, 60Mbps
  • Bitrate: Self-adaptive with IP Camera
  • Record Mode: Manual, Schedule, Motion Detection, Video Loss,
    Privacy Mask, VQD, IVA

Network–

  • Network Protocol: HTTP, TCP/IP, IPV4, UDP, RTSP, DHCP, FTP, PPPOE,
    NTP, UPnP, P2P, DDNS, SMTP
  • Max. Online User: 20
  • Mobile App: Antarview(IOS & Android)
  • Interoperability: Onvif Profile S, SDK

Electrical–

  • Power supply: DC 48V1.35A, DC 48V1.875A
  • Consumption: 7W without HDD

Environmental–

  • Working Temperature: -10℃~+55℃
  • Working Humidity: 10~90%

Package–

  • Dimensions: 215mmx235mmx45mm
  • Net Weight: 1.7KG
  • Gross Weight: 2.05KG

Certifications–

  • CE: EN55032, EN55024, EN61000-3-2, EN61000-3-3
  • FCC: Part 15 Subpart B,ANSI C63.4-2014
MOQ: 5
Buy Now Start Order

  Contact Seller

Z508NER : ZKTeco 08 Channel Network Video Recorder

ZKTeco Z508NER 08 Channel NVR provides intuitive shortcut operations, remote control and management, flexible storage, smart search and playback. It’s widely used for the government, banking sectors, manufacturers, educational or commercial projects.

Powered by the strong interoperability and Onvif Profile S, it’s compatible with plenty of 3rd party IPC or crossing platform VMS.
