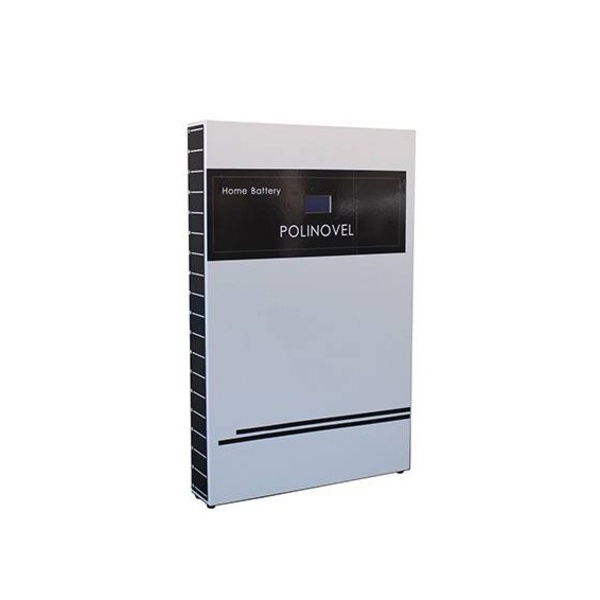

Powerwall 5KWH Lithium ion LiFePO4 Solar Home Battery
৳ 135,000.00 Per Piece
Polinovel brings a new concept of lithium battery for solar
home energy storage system. Wall-mounted design in slim appearance, small bod
with more energy. Utilize the safest LiFePO4 battery with maximum power and
cycle life for home appliances.
Polinovel V+ series wall mounted
lifepo4 home battery adopts the patented cylindrical 32650 cells, the whole
internal assembly from cells, modules, BMS to components are screw-fastened
that presents increased safety and more reliable energy.
Our Lithium Ion
Battery Features
· Only
12.2cm thick design is suitable to be installed on the wall or ground
· Compatible with most of smart solar inverter
in the market
· The internal and external dual-switch
protection provides the utmost safe power for your home system
· The V+ home battery allows maximum 10 units in
parallel connection for energy expansion
Slim Size
Only 12.2cm thick
design suitable to be installed on the wall or ground, it is elegant
and saving space.
Dual-switch Protection
The internal and
external dual-switch protection provides the utmost safe power for your solar
home system.
Excellent
Compatibility
The wall mount home
lithium battery is compatible with most of the smart solar inverters in the
market.
Expandable Capacity
The V+ home battery
allows a maximum of 10 units in parallel connection, it is flexible for future
energy expansion.
Lithium Battery
Specification V+5000
|
Model |
V+5000 |
|
Nominal Voltage |
51.2V |
|
Nominal Capacity |
100Ah |
|
Energy |
5120Wh |
|
Connection |
max. 10pcs parallel |
|
Standard Charge Volt |
58.4V |
|
Discharge Cut-off Volt |
40.0V |
|
Standard Charge Current |
60A |
|
Max. Charge Current |
100A |
|
Const. Discharge Current |
100A |
|
Peak Discharge Current |
200A (<5s) |
|
Dimensions (L x W x H) |
936 x 605 x 122 mm |
|
Weight |
75kg |
|
Terminal Type |
Wire |
|
Case Material |
Iron |
|
Enclosure Protection |
IP65 |
|
Cell Type |
Cylindrical |
|
Chemistry |
LiFePO4 |
|
Communication |
RS232, RS485 |
|
Operation Temperature Range |
Charge: -35 to 45 ºC (31 to 113 ºF); Discharge: -35 to 60 ºC |
|
Storage Temperature Range (1;3;6 months) |
-20 to 60 ºC (-4 to 140 ºF); -20 to 45 ºC (-4 to 113 ºF); -20 |
Polinovel Lithium Battery
Application:
RV, Motorhome, Camper, Caravan,
Campervan, Trailer, Offroad Vehicle, Marine, Yacht, Catamaran, Fishing Boat,
Bass Boat, Sail Boat, Trolling Motor, Kayak, Golf Cart, Golf Buggy, Rickshaw,
Solar Energy Storage System, AGV, RGV, ATV, UTV, Forklift, Ice Resurfacer,
Mower, Tractor, Sweeper, etc.
Additional information
| Weight | 108 kg |
|---|---|
| Dimensions | 105 × 72 × 35 in |
