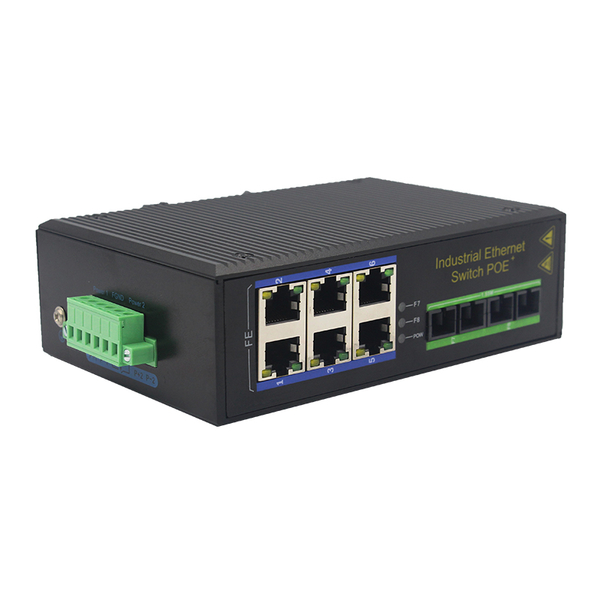

100M 2 FIber Ports 6 Electric Ports Industrial-grade Ethernet Switch

৳ 5674

Sold By: Qianlue

In stock

100M 2 FIber Ports 6 Electric Ports Industrial-grade Ethernet Switch

6 100M electric ports + 2 100M FX fiber ports industrial-grade Ethernet switch, supports 6 10Base-T/100Base-TX electric ports and 2 100Base-FX fiber ports. Products comply with FCC, CE, ROHS standards

Download Shodagor mobile app for quick order. Install App
MOQ: 5
Start Order

  Contact Seller

Product Name:
100M 2 fiber ports 6 electric ports industrial-grade Ethernet switch
Product Model:
ZXR26F series
Product Description:
6 100M electric ports + 2 100M fiber ports industrial-grade Ethernet switch
Port Description:
6 RJ45 ports + 2 fiber ports
RJ45 Port:
10/100BaseT(X) auto detect, full/half duplex MDI/MDI-X adaptive
Fiber Port:
100BaseFX port (SC/FC/ST optional)
Network Protocol:
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX/FX;
IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Working temperature : -40~85 °C (-40~185 °F)
Storage temperature : -40~85 °C (-40~185 °F)
Relative humidity: 5% to 95% (no condensation)

Power Supply:
Input voltage: DC12-52V (dual power redundant backup)
Access terminal: Phoenix terminal
Supports dual power redundancy
Supports built-in overcurrent 4.0A protection
Supports reverse polarity protection

Mechanical Characteristics:
Shell: IP40 protection, metal shell
Installation: DIN-Rail/wall-mounted
Cooling method: natural cooling, no fan
Weight: 0.36Kg
Dimensions : 118 x 86 x 39mm (length x width x height)

LED Indicator:
Power indicator : PWR
Interface indicator: electric port, fiber port (Link/ACT)

Protection Level:

Passed certification: CE, FCC, Rohs, ISO9001: 2008 Ministry of Industry and Information Technology Network Access License
Ministry of Public Security Inspection Report
Safety: UL508
Mean Time between failures:
300,000 hours

5 years

Product Features
●Provides good optical and electrical characteristics with high quality optoelectronic integrated modules
●Guarantees reliable data transmission and long working life
●Supports full-duplex or half-duplex mode with auto-negotiation capability
●The network port supports automatic cross recognition
●With internal storage and forwarding mechanism, supports multiple protocols
●Compliant with industrial-grade operating standards, with an average trouble-free operation of over 300,000 hours
●Working power supply: DC 12-52V ,provides reverse polarity protection
●Uses SC/FC/ST fiber interface
●Lightning surge protection (power supply): 5000A (8/20μs)

Additional information

Weight 0.36 kg
