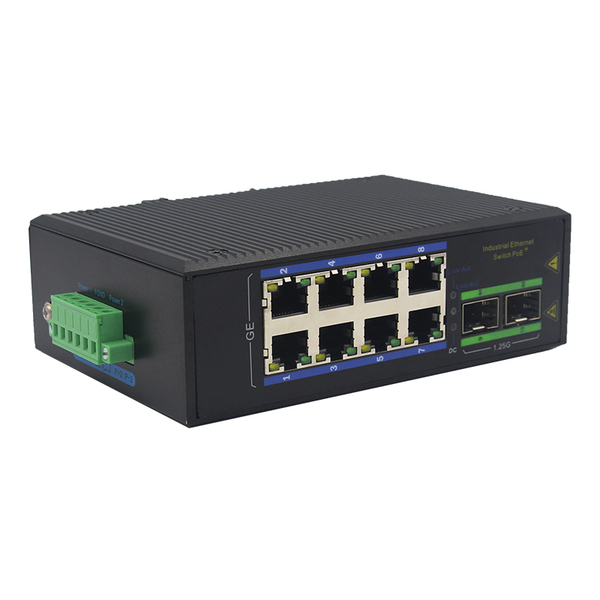

Gigabit 2 Fiber Ports 8 Electric Ports Managed Industrial-grade Ethernet Switch, 8 Gigabit electrical ports

৳ 9619

Sold By: Qianlue

In stock

 Gigabit 2 Fiber Ports 8 Electric Ports Managed Industrial-grade Ethernet Switch,

ZX628GS-SFP is a managed industrial-grade Ethernet switch, and its products comply with FCC, CE and ROHS standards. It supports 2 Gigabit fiber ports and 8 Gigabit electrical ports

৳
MOQ: 5
Start Order

  Contact Seller

Product Name:
Gigabit 2 fiber ports 8 Electric Ports Industrial-grade POE Ethernet Switch
Product Model:
ZX628GS-SFP series
Port Description:
8 RJ45 ports + 2 fiber ports
RJ45 Port:
10/100/1000BaseT(X) auto detect, full/half duplex MDI/MDI-X adaptive
Fiber Port:
1000BaseFX port (SFP interface)
Network Protocol:
IEEE802.3-10BaseT; IEEE802.3u-100BaseTX/100Base-FX; IEEE802.3x-Flow Control; IEEE802.3z-1000BaseLX; IEEE802.3ab-1000BaseTX; IEEE802.1ab Logical Link Discovery Protocol; IEEE802.1D-Spanning Tree Protocol; IEEE802.1w-Rapid Spanning Tree Protoco; APS
IEEE802.1Q-VLAN Tagging; IEEE802.1p-Class of Service; IEEE802.1X-Port Based Network Access Control, etc.
Environment:
Working temperature : -40~85 °C (-40~185 °F)
Storage temperature : -40~85 °C (-40~185 °F)
Relative humidity: 5% to 95% (no condensation)
Cyber Security

Supports IEEE 802.1x; Supports HTTP; Supports RADIUS
Supports user rating; Supports MAC address binding

Management and maintenance:

Supports Console, WEB management method

Supports SNMP v1/v2/v3

Power Supply:
Input voltage: DC12-52V (dual power redundant backup)
Access terminal: Phoenix terminal
Supports dual power redundancy
Supports built-in overcurrent 4.0A protection
Supports reverse polarity protection
Mechanical Characteristics:
Shell: IP40 protection, metal shell
Installation: DIN-Rail/wall-mounted
Cooling method: natural cooling, no fan
Weight: 0.82Kg
Dimensions : 179 x 134 x 46mm (length x width x height)

Redundancy technology:

Supports ERPS ring network technology, self-healing time <20ms

Supports STP/RSTP/MSTP

Multicast technology:

Supports IGMP v1/v2/v3, IGMP snooping

Supports GMRP, support static multicast

Exchange function:

Supports port rate limit Support port aggregation Support port flow control

Supports port VLAN, IEEE 802.1Q VLAN

Supports broadcast storm suppression

LED Indicator:
Power indicator : PWR
Interface indicator: electric port, fiber port (Link/ACT)
Protection Level:
IP40
Certification:
Passed certification: CE, FCC, Rohs, ISO9001: 2008 Ministry of Industry and Information Technology Network Access License
Ministry of Public Security Inspection Report
Safety: UL508
Mean Time between failures:
300,000 hours
Warranty:
5 years
Product Features

●Supports IGMP Snooping and GMRP filtering multicast packets

●Supports Port-based VLAN interface, IEEE 802.1Q VLAN and GVRP protocol, simple network planning

●Supports QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase network stability

●Supports stp/Rstp, SNMPv1/v2/v3, and ensure network security

●Uses RMON to improve the predictive ability of network monitoring machines

●Supports ERPS ring network

●Supports port mirroring for easy online debugging

●Supports port rate limiting, broadcast storm suppression, multicast storm suppression, and unknown unicast storm suppression.

●Security management: Supports ACL access control list, supports 802.1X, and supports user hierarchical management.

●Management function: Supports WEB, SNMP management mode

●Monitoring and maintenance: Supports port mirroring, interface status monitoring, and log management.

●Alarm function: Supports power, port, abnormal state relay output IP40 protection level

Additional information

Weight 0.82 kg
