100M 5-port Industrial-grade Ethernet Switch, upper & lower electrical

৳ 2294

Sold By: Qianlue

In stock

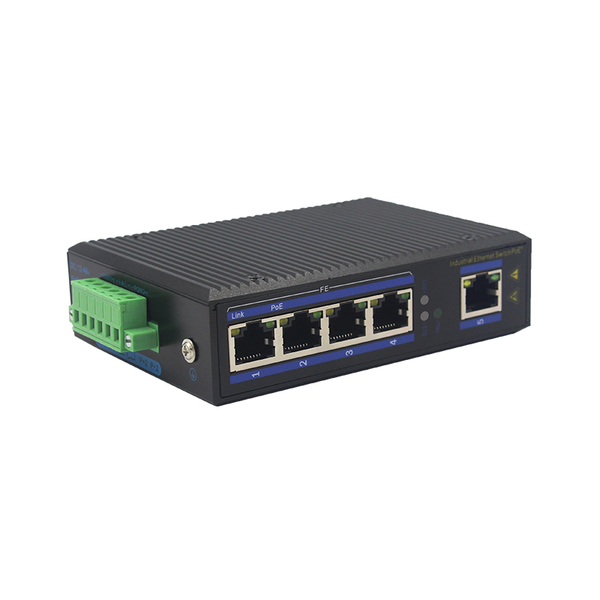

100M 5-port Industrial-grade Ethernet Switch

1 100M上部电端口+ 4 100M下部电端口工业级以太网交换机,支持1个10Base-T / 100Base-T(X)上部电端口和4个10Base-T / 100Base-T(X)下部电端口。

1 100M upper electrical port + 4 100M lower electrical port industrial grade Ethernet switch, supports 1 10Base-T / 100Base-T (X) upper electrical port and 4 10Base-T / 100Base-T (X) lower electrical port.

৳
MOQ: 5
Start Order

  Contact Seller

Product name:

100M 5-port Industrial Ethernet Switch

Product number:

ZXR05F series

Product description:

1 100M power-on port + 4 100M power-off port industrial Ethernet switch

Port description:

5 RJ45 port

RJ45 port:

10 / 100BaseT (X) automatic detection, full / half duplex MDI / MDI-X adaptive

Network protocol:

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX / FX;

IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; IEEE802.3af; IEEE802.3at;

Surroundings:

Working temperature: -40 ~ 85 ° C (-40 ~ 185 ° F)

Storage temperature: -40 ~ 85 ° C (-40 ~ 185 ° F)

Relative humidity: 5% to 95% (non-condensing)


Power Supply:
Input voltage: DC12-52V (dual power redundant backup)
Access terminal: Phoenix terminal
Supports dual power redundancy
Supports built-in overcurrent 4.0A protection
Supports reverse polarity protection

Mechanical Characteristics:
Shell: IP40 protection, metal shell
Installation: DIN-Rail/wall-mounted
Cooling method: natural cooling, no fan
Weight: 0.36Kg
Dimensions : 118 x 86 x 39mm (length x width x height)


LED Indicator:
Power indicator : PWR
Interface indicator: electric port, fiber port (Link/ACT)

Protection Level:
IP40

Certification:
Passed certification: CE, FCC, Rohs, ISO9001: 2008 Ministry of Industry and Information Technology Network Access License
Ministry of Public Security Inspection Report
Safety: UL508
Mean Time between failures:
300,000 hours

Warranty:
5 years

Product Features
●Provides good optical and electrical characteristics with high quality optoelectronic integrated modules
●Guarantees reliable data transmission and long working life
●Supports full-duplex or half-duplex mode with auto-negotiation capability
●The network port supports automatic cross recognition
●With internal storage and forwarding mechanism, supports multiple protocols
●符合工业级操作标准,平均无故障运行超过30万小时
●工作电源:DC 12-52V,提供反极性保护
●雷电浪涌保护(电源):5000A(8 /20μs)

Additional information

Weight 0.36 kg
