Gigabit 4 Fiber Ports 16 Electric Ports Managed Industrial-grade Ethernet Switch, Fast Ethernet and fiber optic interface

৳ 19001

Sold By: Qianlue

In stock

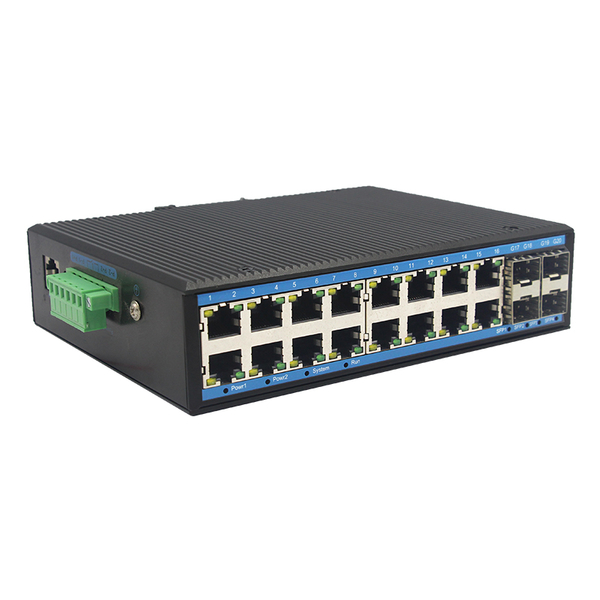

Gigabit 4 Fiber Ports 16 Electric Ports Managed Industrial-grade Ethernet Switch

ZX6416GS-SFP is a managed industrial-grade Ethernet switch, and its products comply with FCC, CE and ROHS standards. It can be combined in a variety of combinations of Fast Ethernet and fiber optic interface.

৳
MOQ: 5
Start Order

  Contact Seller

Product Name:
Managed Industrial-grade Ethernet Switch
Product Model:
ZX6416GS-SFP series
Port Description:
16 RJ45 ports + 4 fiber ports
RJ45 Port:
10/100/1000BaseT(X) auto detect, full/half duplex MDI/MDI-X adaptive
Fiber Port:
1000BaseFX port (SFP interface)
Network Protocol:
IEEE802.3-10BaseT, IEEE802.3u-100BaseTX/100Base-FX, IEEE802.3x-Flow Control, IEEE802.3z-1000BaseLX, IEEE802.3ab-1000BaseTX, IEEE802.1ab Logical Link Discovery Protocol, IEEE802.1D-Spanning Tree Protocol, IEEE802.1w-Rapid Spanning Tree Protocol, APS
IEEE802.1Q-VLAN Tagging, IEEE802.1p-Class of Service, IEEE802.1X-Port Based Network Access Control, etc.
Environment:
Working temperature : -40~85 °C (-40~185 °F)
Storage temperature : -40~85 °C (-40~185 °F)
Relative humidity: 5% to 95% (no condensation)
Cyber Security

Supports IEEE 802.1x; Supports HTTP; Supports RADIUS
Supports user rating; Supports MAC address binding

Management and maintenance:

Supports Console, WEB management method

Supports SNMP v1/v2/v3

Power Supply:
Input voltage: DC12-52V (dual power redundant backup)
Access terminal: Phoenix terminal
Supports dual power redundancy
Supports built-in overcurrent 4.0A protection
Supports reverse polarity protection
Mechanical Characteristics:
Shell: IP40 protection, metal shell
Installation: DIN-Rail/wall-mounted
Cooling method: natural cooling, no fan
Weight: 0.82Kg
Dimensions : 179 x 134 x 46mm (length x width x height)

Redundancy technology:

Supports ERPS ring network technology, self-healing time <20ms

Supports STP/RSTP/MSTP

Multicast technology:

Supports IGMP v1/v2/v3, IGMP snooping

Supports GMRP, support static multicast

Exchange function:

Supports port rate limit Support port aggregation Support port flow control

Supports port VLAN, IEEE 802.1Q VLAN

Supports broadcast storm suppression

LED Indicator:
Power indicator : PWR
Interface indicator: electric port, fiber port (Link/ACT)
Protection Level:
IP40
Certification:
Passed certification: CE, FCC, Rohs, ISO9001: 2008 Ministry of Industry and Information Technology Network Access License
Ministry of Public Security Inspection Report
Safety: UL508
Mean Time between failures:
300,000 hours
Warranty:
5 years
Product Features

●Data control: Supports 802.3X full-duplex flow control, supports network storm suppression

●Redundant network: Supports STP/RSTP/MSTP, supports ERPS (self-healing time <20ms)

●Multicast management: IGMP Snooping V1/V2/V3 is supported

●VLAN: Supports IEEE 802.1Q VLAN and effectively isolates broadcast domains

●Link aggregation: Supports static/dynamic aggregation of links and provides complete bandwidth utilization

●QOS: Supports COSDSCP, 4 queues, supports WRRSP scheduling mode


●Security management: Supports ACL access control list, supports 802.1X, and supports user hierarchical management.

●Management function: Supports WEB, SNMP management mode

●Monitoring and maintenance: Supports port mirroring, interface status monitoring, and log management.

●Alarm function: Supports power, port, abnormal state relay output IP40 protection level

Additional information

Weight 0.82 kg
