4-20mA High Accuracy RS485 GML601-C High Precision Small Blind Spot Ultrasonic Level Transmitter

৳

In stock

GML601-C High Precision Small Blind Spot Ultrasonic Level Transmitter

Product Overview

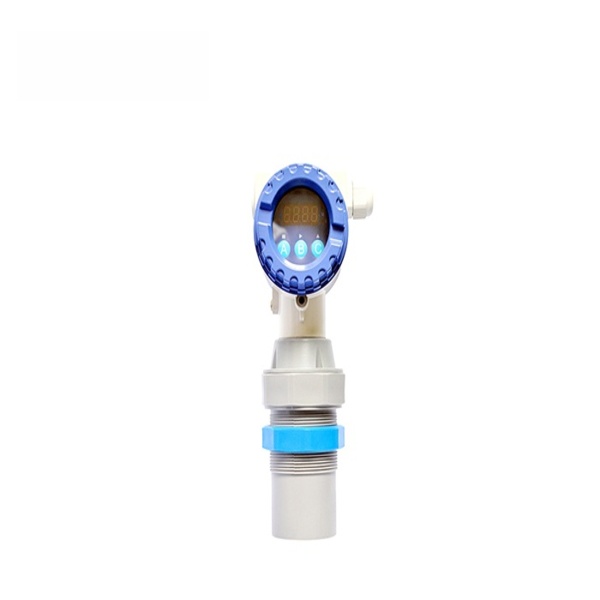

GML601-C high precision small blind spot ultrasonic level transmitter is developed by our company for small blind zone, high precision and small space working condition control. China’s first ultrasonic ranging product with a blind zone of less than 0.06m and an accuracy of ± 1mm (has won the National Science and Technology Innovation Fund Project Award, Chongqing High-tech New Product, and Chongqing Key New Product). The shell is made of ABS engineering plastic waterproof shell, the probe part is PP or stainless steel, the shell is small and very sturdy; the transparent main cover is designed for easy observation and display. The main chip adopts imported industrial-grade

single-chip microcomputers, digital temperature compensation, and ultra-wide voltage input voltage regulators, including dozens of related application-specific integrated circuits, to make the product performance more stable and more reliable. It has strong anti-interference ability. It can set the upper and lower limit nodes and online output adjustment arbitrarily through the host computer software. It can choose analog quantity, switch quantity and RS485 output, which is convenient to interface with related facilities. It has high reliability, no pollution, stable performance, and can meet most liquid level and material level measurement requirements without contacting industrial media. It completely solves the shortcomings of entanglement, blockage, leakage, medium corrosion and inconvenience caused by traditional measurement methods such as pressure, capacitance, and float. Therefore, it can be widely used in various fields related to material level and liquid level measurement and control. This product has been inspected and approved by the national authority. This product complies with the national standard requirements of GB3836.1-2010 and GB3836.4-20010. The explosion-proof mark is ExiaIIBT4Gb.

Technical Parameter

Performance
Range 1m, 2m (selected when ordering)
Dead zone <0.06-0.15m (different from range)
Launch angle Less than 6 ° (depending on the sensor)

Minimum display

resolution

1mm
Maximum error Less than ± 1mm, less than ± 1.5mm (different from range)
Working frequency 40KHz~430.0KHz (different due to model specifications)

Temperature

compensation

Automatic temperature compensation
Display

Four-digit eight-segment LED digital tube, OLED Chinese and English menu

(with self-luminous)

Site setup Completed by local keys
Calibration Factory calibration and field calibration
Output (selected when ordering)
Analog output signal

0~20mA; 4~20mA load> 300Ω; 0~5V; 1~5V; 0~10V;

1~10V

Digital output RS485 (supports Modbus)
Switch output Triple NPN
Power
Operating Voltage DC12-24V
Power consumption <1.5W
Physical properties

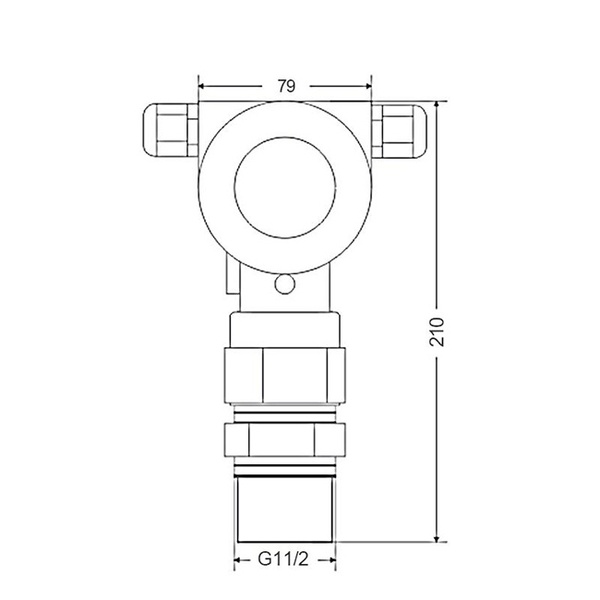

Dimensions

Φ74mm × 92mm × M30 (stainless steel);

Φ74mm × 117mm × G1 1/2 (ABS)

Installation method M30 × 1.5, G1 1/2
shell material ABS engineering plastics;
Transducer Stainless steel or ABS engineering plastic
Keypad Three-position patch A, B, C keyboard
Outlet method Meter standard socket or cable 1.5M (optional arbitrary length)
Environmental performance
Protection class IP65 (customizable higher protection level)

Explosion-proof

grade

EXiaII BT4Gb (selected when ordering)

working

environment

Temperature and pressure
Storage humidity ≤80% RH without condensation

Product Features

1. Sturdy and stable sensor suitable for harsh industrial occasions

2. Strong anti-interference, can set the upper and lower limit nodes and online output adjustment

3. Built-in temperature sensor in the transducer, real-time automatic temperature compensation of measured values

4.4~20MA current output, optional fieldbus interface

5.The first domestic 0.06m small blind spot level gauge

৳
MOQ: 1
Start Order

  Contact Seller

Product Details

Product Application

1. Water and sewage treatment PPumphouse collection well, biochemical reaction tank, sedimentation tank, etc.
2. Electricity, mine mortar pool, coal slurry tank, butter storage tank, stockyard or some mobile equipment control, etc.
3. Food industry Winery, granary, food materials, tanks, etc.
4. Control system supporting use.
