Panel Mounted External Clip Type Ultrasonic Flowmeter

৳

In stock

GMF200-B Panel mounted external clip type ultrasonic flowmeter

Product overview

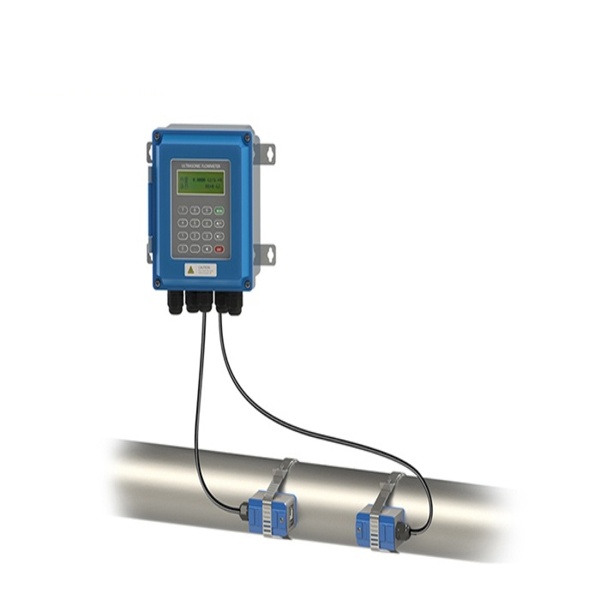

GMF200 -B Series external type ultrasonic flowmeter is transmitted by the host and the external clip type sensor composition.
Just attach the outer clip sensor to the surface of the pipeline to complete the flow measurement of various liquids. Compared with traditional flow meters, it does not need to cut off the pipe and flow, and the installation is quick and easy.

Technical parameters

Working environment

Host Sensor
Protection level IP67 IP68
Humidity ≤85%RH
Temperature -20℃-60℃ -30℃-160℃

Basic parameters

Accuracy ±1%
Flow velocity 0~±10m/s
Pipe diameter DN15-DN6000
Fluid temperature -30℃-160℃
Fluid type Water, seawater, industrial sewage, acid and alkali, alcohol, beer, various oils, and other single homogeneous liquids that can conduct ultrasonic waves.
Pipe material All dense pipes such as steel, stainless steel, cast iron, steel, PVC, aluminum, and glass-reinforced plastic are allowed to be lined.
Signal output

1 channel 4-20mA current output, impedance 0-1K, accuracy 0.1% (optional)

1 channel OCT pulse output (pulse width 6-1000ms, default 200ms)

1 channel Relay output

Signal input

3 channel 4-20mA current input,

A three-wire PT100 platinum resistor can be connected to thermal measurement.

Communication Interface Isolated RS485 serial interface, support MODBUS protocol
Data storage SD card timing storage setting parameters and measurement results (optional)
Power supply DC8~36V or AC85~264V

Product features

1.The host is used for dashboard installation.
2.The external sensor is installed on the surface of the pipeline. Choose different sensors, applicable caliber: DN15 ~ DN6000.

৳
