IP68 Dual-channel large-caliber ultrasonic water meter RS485 GMF200-W

৳

In stock

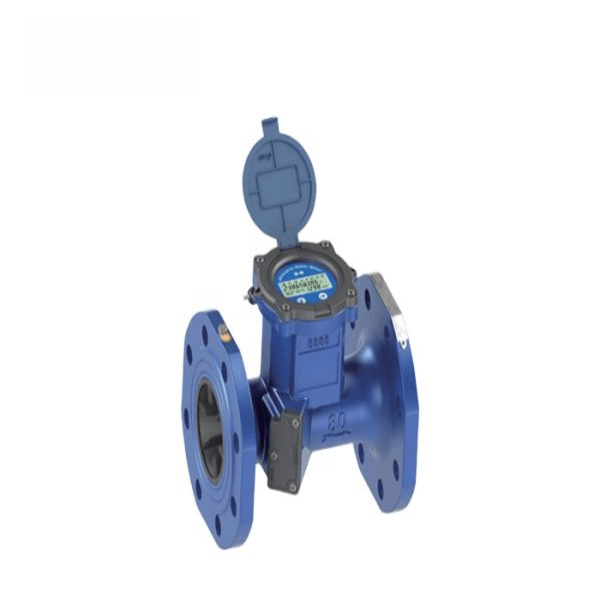

GMF200-W ultrasonic water meter

GMF200-W ultrasonic water meter is designed for water metering settlement and production of a high performance products, with the remarkable features of low power consumption, wide measuring range ratio, stable and reliable measurement .Each component reaches IP68 protection class, to ensure long term operation though water in the inside meter.
Specification
Item
Specification
Measurement Liquid
Water, Sewage, Seawater(Other liquid need to customized), liquid should be full of the pipeline
Temperature
0.1~+30
Working Environment
Temperature:-10-45℃;Humidity:≤100%(RH)
Working Pressure
1.6Mpa (2.5Mpa optional)
Flow field rating
U3 D0
Security Level
C class
Electromagnetic compatibility class
E2 class
Communication Interface
RS485/MODBUS/USART/ OCT/Infrared
Output Signal
Two isolated OCT or TTL pulse output/1 two-wire 4-20mA analog output
Power supply
Built-in Lithium battery(3.6,19AhV)/External DC8-30V DC power supply/two-wire 4-20mA power supply
Protection Class
IP68, can work 2 meters under water
Local display
Multi line 9 digital accumulative flow, 4 digital display for instantaneous flow, varies of state prompt and units
Data Storage
Using FRAM / FLASH storage parameters, automatically record the cumulative flow of the previous 512 days
Power Consumption
20 years of battery life
৳
MOQ: 1
Start Order
