GMF200-P Portable Ultrasonic Flow Transmitter

৳

In stock

GMF200-P Portable Ultrasonic Flow Transmitter

Product Overview

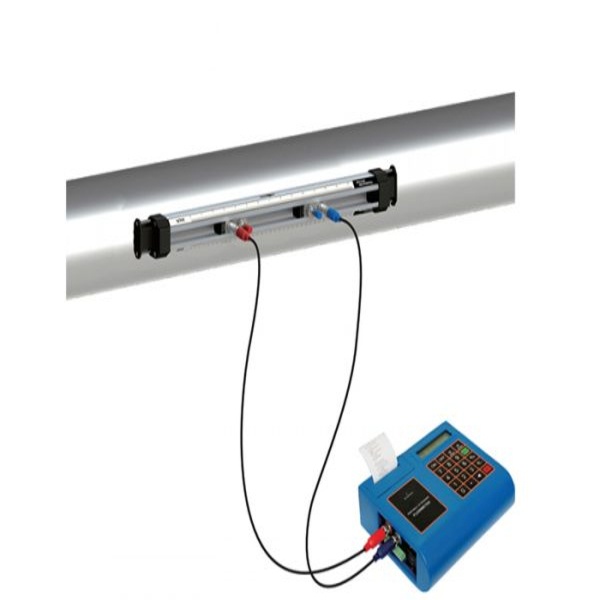

GMF200-P series of portable ultrasonic flowmeters enables non-contact measurement of liquid flow. Install the sensor on the outer wall of the pipeline to complete the flow measurement, which is convenient and accurate. Built-in printer and SD card memory, you can print the set measurement value instantly or regularly.
Widely used in tap water, heating, water conservancy, metallurgy, chemical, machinery, energy and other industries. Can be used for production monitoring, flow calibration, temporary detection, flow inspection, water meter balance debugging, heating network balance debugging, energy saving monitoring

Technical Parameters

GMF200 Series Ultrasonic Flowmeter
Model GMF200-H
Principle Ultrasonic time difference principle
Precision ±1%
Display 4×8 Chinese or 4×16 Western dot matrix backlit LCD, supporting Chinese, English, Italian and French languages
Output

1 channel 4-20mA output

1 channel OCT pulse output (pulse width 6-1000ms, default 200ms)

1 channel relay output

Data interface Isolating the RS-232 application interface, the flow meter can be upgraded through a PC
Pipe Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, and other dense pipes, allowing lining
Pipe inner diameter 15-6000mm
Straight pipe The sensor installation point is best to meet: upstream 10D, downstream 5D, from the pump outlet 30D (D is the pipe diameter)
Medium Water, sea water, sewage, acid and alkali, alcohol, beer, various oils, etc.
Fluid temperature -30~+160°C
Turbidity 1000pmm bubble content is small
Flow rate 0~±10m/s
Working environment Host: -20 ~ +60 ° C; flow sensor: -30 ~ +160 ° C
Host: 85% RH; sensor protection grade: IP67
Power supply 3-cell rechargeable Ni-MH battery with 1.2V capacity of 2000mAH, which can work continuously for more than 12 hours every time.
Power consumption 1W
Housing material Flame retardant ABS
Host weight 390g

৳
