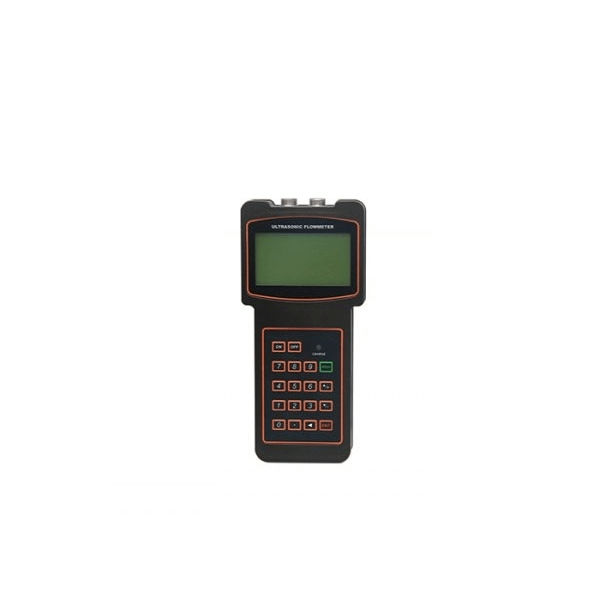

Easy installation Hand Held Ultrasonic Mini Water Oil Flow Meter GMF200-H

৳

In stock

Product Overview

GMF200-H series hand-held ultrasonic flowmeter realizes non-contact measurement of liquid flow. Install the sensor on the outer wall of the pipe to complete the flow measurement. With small size, easy to carry, accurate measurement and so on.
Widely used in tap water, heating, water conservancy, metallurgy, chemical, machinery, energy and other industries. It can be used for production monitoring, flow calibration, temporary detection, flow inspection, water meter balance debugging, heating network balance debugging, and energy saving monitoring. It is a necessary tool for timely flow detection.


৳
MOQ: 1
Start Order

  Contact Seller

Easy installation Hand Held Ultrasonic Mini Water Oil Flow Meter GMF200-H

Product Overview

GMF200-H series hand-held ultrasonic flowmeter realizes non-contact measurement of liquid flow. Install the sensor on the outer wall of the pipe to complete the flow measurement. With small size, easy to carry, accurate measurement and so on.
Widely used in tap water, heating, water conservancy, metallurgy, chemical, machinery, energy and other industries. It can be used for production monitoring, flow calibration, temporary detection, flow inspection, water meter balance debugging, heating network balance debugging, and energy saving monitoring. It is a necessary tool for timely flow detection.

Product Parameter

Model GMF200-H
Principle Ultrasonic time difference principle
Precision ±1%
Display 4×8 Chinese or 4×16 Western dot matrix backlit LCD, supporting Chinese, English, Italian and French languages
Output 1 channel OCT pulse output (pulse width 6-1000ms, default 200ms)
Data interface Isolating the RS-232 application interface, the flow meter can be upgraded through a PC
Pipe Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, and other dense pipes, allowing lining
Pipe inner diameter 15-6000mm
Straight pipe The sensor installation point is best to meet: upstream 10D, downstream 5D, from the pump outlet 30D (D is the pipe diameter)
Medium Water, sea water, sewage, acid and alkali, alcohol, beer, various oils, etc.
Fluid temperature -30~+160°C
Turbidity 1000pmm bubble content is small
Flow rate 0~±10m/s
Working environment Host: -20 ~ +60 ° C; flow sensor: -30 ~ +160 ° C
Host: 85% RH; sensor protection grade: IP67
Power supply 3-cell rechargeable Ni-MH battery with 1.2V capacity of 2000mAH, which can work continuously for more than 12 hours every time.
Power consumption 1W
Housing material Flame retardant ABS
Host weight 390g

Product Features

1. No need to cut off the pipe and flow, no pressure loss

2. DN15 ~ DN6000 pipeline flow measurement

3. Fluid temperature -30 ℃ ~ -160 ℃

Additional information

Weight 3 kg
